Mpo 40g 850nm 100m Qsfp Sr4 - China

MPO 40G 850NM 100M QSFP SR4

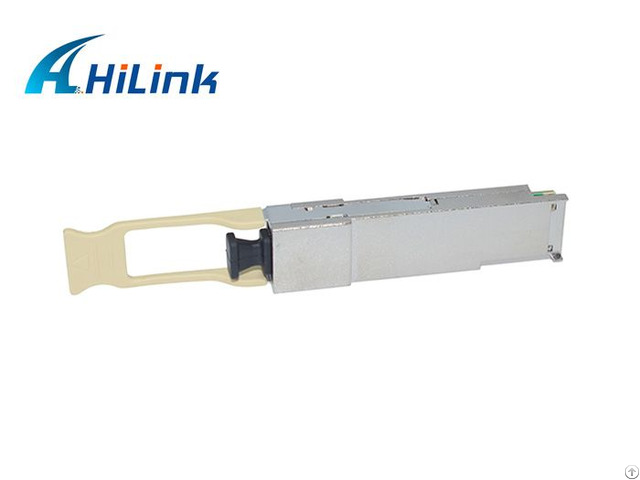

Hilink 40G 850nm OM3 100m QSFP SR4 Optical Transceiver uses an 12 fiber MPO connector.

PRODUCT DESCRIPTIONFeatures:

QSFP+ MSA, SFF-8436 compatible

MPO Connector

Distance up to 200m over OM4 Fiber

VCSEL array transmitter and PIN array receiver

Electrically Hot-pluggable

Single 3.3V Power Supply

Power Dissipation< 1.5W

Digital Diagnostics Monitoring Interface

Operating Case Temperature: 0-70℃

Applications:

Hilink 40GBASE-SR4

Server-Server Clusters, Super-computing interconnections

40G Applications backplane

InfiniBand SDR, DDR and QDR applications

Item Hilink QSFP SR4 Description

Transceiver form factor QSFP+

Transmission speed 40GE

Center wavelength (nm) 850

Standards compliance 40GBASE-SR4

Connector type MPO/PC (8-strand or 12-strand, type B, female connector)

Applicable cable and maximum transmission distance Multimode fiber (OM3): 0.1 km Multimode fiber (OM4): 0.15 km Transmit power (dBm) -7.6 to +2.4

Maximum receiver sensitivity (dBm) -5.4

Overload power (dBm) 2.4

Extinction ratio (dB) 3.0

Operating temperature 0°C to 70°C (32°F to 158°F)

Part number HL-QSFP-40G-SR4
