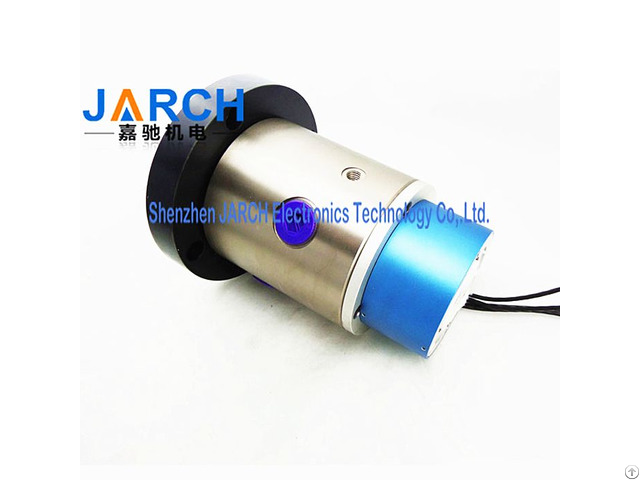

Speed 30rpm Signal Hybrid Slip Rings With Pneumatic Oil Aluminium Alloy Hydraulic Rotary Joint - China
price: 200.00 Dollar US$
30RPM Max Speed Signal Hybrid Slip Rings With Aluminium Alloy House, OD 170mm Feature: Standard product for Hydraulic controlARCH Small size, light weight, low friction torque, rotation without crawlingJARCH Super wear-resistant material for sealingARCH Screw Connection available G1/8, G1/4, G1/2, G1 2-8 channels available Custom modifications to our stock products significantly reducing lead times and costs Electrical Specifications: Rings 2 ~ 24 Current 2A / 30A /50A
Voltage None Overall diameter 170mm
Housing Material Aluminium Alloy Torque 0.05N.
m;+0.03N.
m/6rings
Working life 50million Contact material Precious Metal: Gold-Gold
Electrical noise <5 mΩ Contact Resistance <2mΩ
Dielectric strength 1000VDC@50Hz Lead Wire UL Teflon® Awg26, Awg22, Awg16
Insulation resistance 500MΩ@600VDC Lead Lengths 300mm(12")
Operating Temp.
-40°C to 80°C Protection IP54 Materials Lead Free, ROHS Certified CE, FCC, UL, ROHS Slip rings can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.
Company Contact:
- Phone: +8613929708571
- Address: Floor 2, Unit C, Guangfa Industrial Park, Dananhai, Luotian Community, Songgang Street, Baoan Dist., Shenzhen , China
- Email:
Published date: September 21, 2018
- Business Description: JARCH is a professional Slip Ring & Routry Joint manufacturer in Shenzhen, China.
Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.
