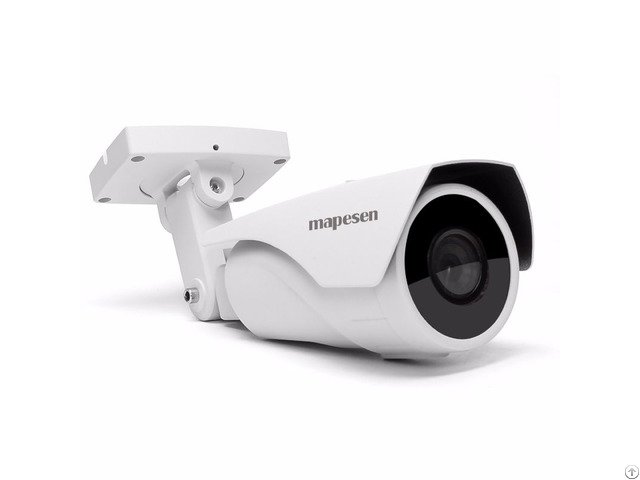

H 265 2 0mp High Resolution Ip Day And Night Colorful Metal Bullet Camera - China

Model No.

MP-L9HSI240/F

Camera

Image Sensor 1/1.8” 2.0MP Sony CMOS

Resolution 1920x1080 30fps

Automatic Diaphragm Optional expansion board, to achieve automatic aperture function

Minimum Illumination 0.001Lux F1.2(Color Pattern)；0.005Lux F1.2(White-Black Patterns)

Video Standard PAL/NTSC

Synchronization Internal

WDR 100dB

S/N Ratio ≥50dB(AGC OFF)

Day and night mode Automatic ICR filter color to black, fixed black and white, fixed color, external control

Gain Control A/M

White Balance Automatic, indoor, outdoor, sodium lamp mode, manual

DNR 3D DNR

Exposure Mode Program Mode (customizable shutter range), shutter mode (1/5-1/20, 000 s), support slow shutter

Video Compression H.

265 Main Profile / H.

264 Main profile / M-JPEG

Audio Audio Compression G711, PCM.

1CH Input: Linear, impedance for 1 k Ω, 1CH Output: Linear, impedance for 600

Video Resolution main code stream: 1920x1080, 1280x960, 1280×720, 720×576, 640×480

Deputy Code Stream: 640×480, 480x360, 352×288, 320×240, 176×144, off

MJPEG：1280x720, off

Output Bit Rate CBR/VBR, Code Flow Can Be Set In Scope: 32Kbps~10Mbps

Character Superposition Support Channel Name, Date Time Overlay, Overlay Location Is Adjustable

Access Number Main code flow 3 users, subcode flow 6 users

Networking Protocol TCP/IP, HTTP, NTP, IGMP, DHCP, UDP, SMTP, RTP, RTSP, ARP, DDNS, DNS, HTTPS, P2P

ONVIF Protocol ONVIF2.4

Compatibility Support the ONVIF platform, such as Hikvision and XM CMS, support the mainstream NVR ONVIF protocol

Cam Monitor supports Android, IOS smartphone access

Network Interface 1CH 10/100BaseT Ethernet, RJ45 Port

LENS

Focal Length 3.6mm/6mm Optional

Lens Mount C/CS

General

Type Outdoor Metal Bullet Camera

Weather Proof IP66

Power Supply 12 V DC±10%

Power Consumption 5W

Operating Temp.

-30 °C to +60 °C

Operating Humidity 0%-90% RH
