Mapesen 4ch Starlight 2 4mp Outdoor Camera With Xvr Diy Kit - China

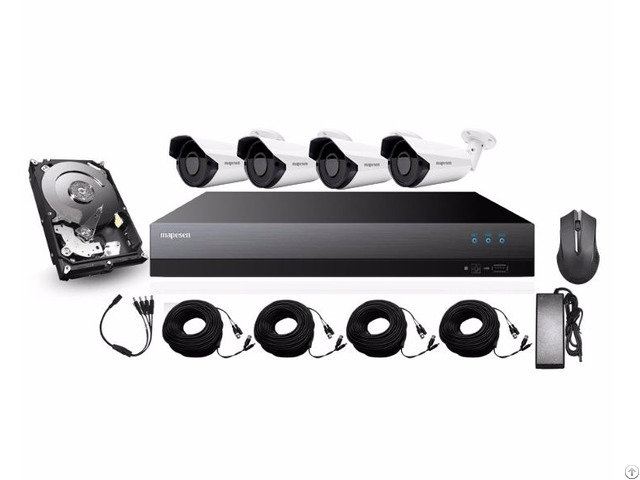

Description

DVR 1xXVR-TMH5104

Camera 4 x L1QSA240

Cable 4x 18m BNC+DC Cable, 1x (1 to 4CH power cable splitter)

Mouse 1xUSB 2.0 Mouse

Hard Disk 1x1TB Seagate hard disk ST1000VM002(Optional)

Adaptor 1xDC12V/2A(For Camera)&1xDC12V/2A(Fo r DVR)

Weight 6.85kg/SET

Camera Model L1QSA240

Image Sensor IMX291

DSP 2441H

Image Resolution 1080P

Effective Pixels 1920*1080

TV System PAL/NTSC

Electronic Shutter AUTO/ 1/50(1/60)-1/100, 000sec

S/N Ratio ≥46dB(AGC OFF)

Scanning System Progressive Scan

Lens

Focus Length 3.6mm

Focus Control Fixed

Lens Type Fixed

Pixels 3M Pixels

Auto Iris Support NO

Night Vision

Infrared LED N/A

Infrared Distance N/A

IR Status N/A

IR Power On N/A

Camera Features Day/Night COLORFUL

OSD Menu Language YES

White Balance AUTO / MANUAL

Gain Control AUTO

Noise Reduction DNR

Picture Adjustment YES

WDR YES

OSD Support YES

UTC YES

General

Housing Metal

Bracket YES

Dual Voltage NO

IR Cut Filter YES

Heater NO

Operation Temperature -20℃ ~ +50℃ RH95% Max Storage Temperature -40℃ ~ +60℃ RH95% Max

Power Source DC12V±10%, 500mA

Dimension 90.5(W) x 80(H) x 80(D)mm

Weight 300g Model XVR-TMH5104

System

Main Processor HI3520D V300

Operating System Embedded LINUX

Video

Input Anolog: 4*1080P

Anolog+Network: 2*Anolog(1080P)+4*network

Network: 9*1080P/960P/720P(Total incoming bandwidth ≤46M)

Input 4CH BNC

Signal Type Anolog/AHD/CVI/TVI 2.0/Network

Output 1HDMI, 1 VGA, 1CVBS

Audio

Input 4 Channel, RCA

Two-way Audio NO

Output 1 Channel, RCA

Alarm

Sensor Input NO

Output NO

Motion Detection 4 Channel(max 9 Channel in pure network mode)

Trigger Events Recording, Email, Screen tips, Buzzer

Email Alarm Send Image to The Designated E-mail

PTZ

Interface RS485

Protocol Pelco-D, Pelco-P

Baud Rate 110~921600

Address 0~255

Display

VGA Resolution: 1024×768, 1280×720, 1280×1024, 1920×1080

HDMI Resolution: 1024×768, 1280×720, 1280×1024, 1920×1080

Display Split 9 Channel/4 Channel / 1Channel

Privacy Masking 1 Rectangular Zones (Each camera)

OSD Camera title, Time, Video loss, Alarm, Motion detection, Recording

Recording

Video Compression H.

264

Audio Compression G711A

Resolution Half 1080P(960×1080);720P(128 0×720);960H(P: 960×576/N : 960×480)

Video Quality worst/worse/ordinary/well /best

Record Rate Half 1080P(960x1080 4*15fps), 720P(1280×720 4*15fps), 960H(P: 960×576 4*25fps/N: 960×480 4*30fps)

Record Mode Manual\Timer\Motion Detection\alarm

Playback & Backup

Sync Playback Pure Anolog: 1CH 1080N@15fps

Mixture mode: 1CH 1080P@30fps

Pure Network: 1CH 1080P@30fps

Remote Playback 1Channel

Search Mode ALL, Channel, Manual, Time, Date, Motion Detection

Playback Functions Play, Pause, Stop, Fast play, Rewind

Smart Phone Playback 1 Channel

Backup Mode USB Device/Network Network

Interface 1 RJ45 10M/100M Adaptive Ethernet Interface Network Functions HTTP, IPv4, IPv6, TCP/IP, SMTP, DHCP, DNS, PPPOE, DDNS, NTP, FTP, UPNP

DDNS Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES

Web Browser IE8-11, Google Chrome (IE Tab), Firefox (IE Tab)

CMS Software Support Windows 7/Windows 8/Windows 10

Extra Stream D1/CIF/(1~25fps)

Smart Phone iPhone, ipad, Android, Android pad

Hard Disk Driver

Interface Type 1 SATA Interface Capacity 2.5"/3.5" SATA, Up to 8TB

General

Language Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa

German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek

UTC Control YES

USB Interface 2 USB 2.0 Interfaces Power consumption DC 12V ≤6W (Without Hard Disk)

Working Environment -10~55℃/10~90%

Dimension (W×D×H) 260*215*43(mm) Weight 2kg (Without HDD)
