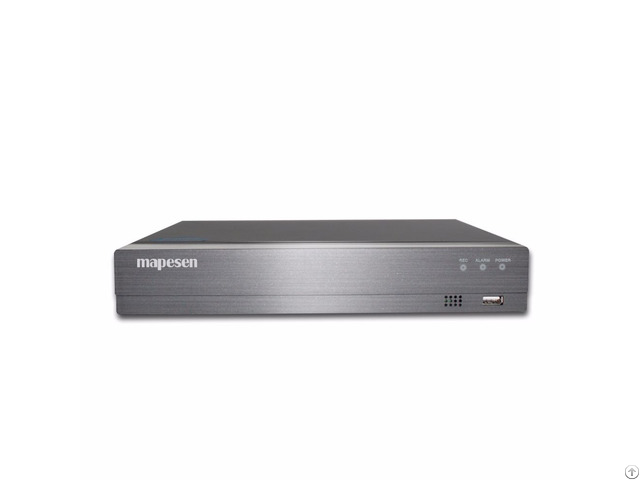

Mapesen 16ch 4mp H 265 Nvr - China

Model No.

MP-NVR-TQ6216

System

Operating System Embedded LINUX System

System Resources At the same time, multi-channel real-time video, multi-channel real-time playback, multiplexing network operation, USD back up

Interface

Operating Interface 16-bit real color graphical menu operating interface, supports mouse operation

Picture Showed 1/4/8/16 Picture

Video

Video Access Mode 8 channel 5M/16 channel 4M/16 channel 3M

Video standard PAL(625 line, 50 A/s), NTSC(525 line, 60 A/s)

Image Decoding H.

265/H.

264

Monitor Quality Max: 4K

Playback Quality 5M/4M/3M

Decoding Ability 4 channel 5M/4 channel 4M/8 channel 3M

Motion Detecting Support(Rely on front-end camera)

Audio

Audio Compression G.

711A

Language Intercom Support

Record Mode manual>alarm>motion detection>timing

Record and Playback

Local Playback 4 channel 5M/4 channel 4M/8 channel 3M

Video Query Time point retrieval, calendar retrieval, event retrieval, channel retrieval

Storage and Backup

Recorded on Native Hard disk, Network

Backup Network backup, USB flash drive, USB burn, SATA burn

Port

Video Output 1 channel VGA, 1 channel HDMI HD Output

Audio I/O 1/1

Alarm I/O N/A(Support Extended 16/4)

Internet Port 1 RJ45 10M/100M adaptive Ethernet port

USB Port 2 USB2.0(tail plate 1, front panel 1 )port and 1 USB3.0 port

Hard Disk Port 2 SATA Port(Up to 8T)

Others

PTZ Control Network control with cloud equipment

ONVIF Support

Power 12V/4A

Power Consumption <10W (Does not contain hard disk)

Work Environment Temperature：0℃-＋55� ��, humidity: 10%-90% RH, Atmospheric pressure: 86kpa-106kpa
