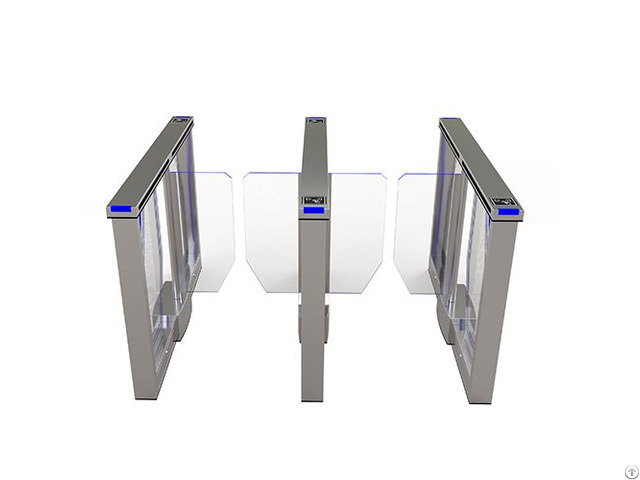

Access Control Turnstile Swing Barrier Jdbz 24 - China

Slim access control turnstile swing barrier, swing barrier turnstile access control system is an ideal crownd control solution for disabled and trolley access Access control turnstile swing barrier JDBZ-24 adopts reliable advanced brushless DC motor ensuring stable operation with low noise, and DC dynamic coding control technology for guranting silent control and gate stability in variable speed movement.

Swing barrier turnstile access control system JDBZ-24 offers multiple operational modes including controlled passage, free passage and visitor, by which pedestrian traffic will be efficiently managed in different situations.

The conbination of a fast throughput, superior barrier deterrence and optical tailgate detection enables swing barrier optical turnstile JDBZ-24 compatible with any upscale business or institutional environment.

Access control turnstile swing barrierJDBZ-24 offeres bi-directional entry control in conjunction with access control device with dry contact output, and automatically open to release the passage for free access in case of power failure or in an emergency.

Becausee of its elegent and stylish design as well as fast throughput, Access control swing barrier turnstile JDBZ-24 is used widely to various applications such as company foyers, data centers, government buildings and fitness centers.

Access Control Turnstile Swing Barrier Features

1 - Smooth and fast opening of barriers

2 - Solution for disabled and trolley access

3 - Free egress in emergencies or loss of power

4 - Quick and precise panel movement and alignment

5 - Motorized panels open quickly and smoothly away from the user

6 - Slim cabinet allows optical turnstile use in compact spaces

7 - Upscale look suitable for any premium lobby

8 - Run more smoothly and stop quickly after being blocked

9 - Streamlined design with a more modern aesthetic

10 - Adopt more reasonable electric control and layout to improve the protection level Access Control Turnstile Swing Barrier Applications

Subway

Large venues

Stadium

Commercial buildings

Fitness center Access Control Turnstile Swing Barrier Parameters

Housing material: #304 stainless sheet

Dimension: 1500 x 160 x 980mm

Power Supply: AC220V / AC110V, 50/ 60 Hz

Channel Width: 600~900mm

Drive Motor: DC 24V brushless motor

Pass Speed: 30 ~35 persons per minute

Input Interface: Dry contact signal or +12V level signal or DC12V pulse signal

Rotating Direction: Bi-directional

Communication interface: RS485

Gate open when power failure: Yes

Open Time: 0.2 second

Life Cycle: 3 million times

Working Temperature: -30°C~+70°C

Working Environments: Indoor, outdoor (with shelter)
