195dce Dc Energy Meter - China

BJ195DCE DC Energy Meters are mainly used to

measure the energy consumption for different load

connected to it.

DC energy consumption for the loads

like telecom BTS (Base Transceiver Stations), solar

panel and any applications need DC power parameter

monitor.

The meter calculated energy data by

connecting appropriate shunts in the loads circuit.

The

voltage drop across shunt is fed to DC energy meter

input terminals.

The millivolts across shunts are

converted into current depending upon the shunt ratio

used in circuit.

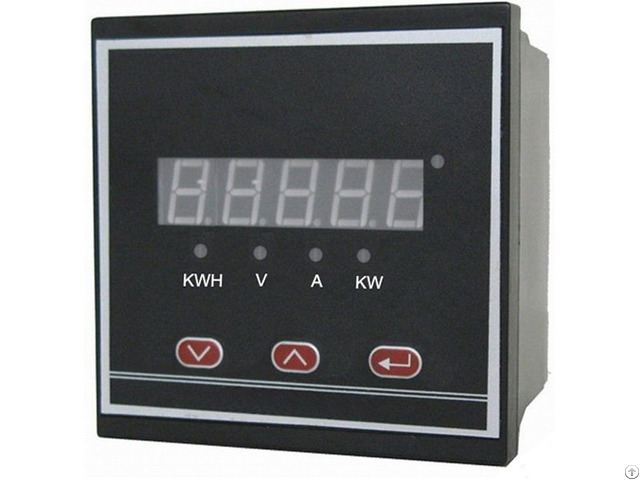

The DC Energy Meter is a micro-controller based product that measures DC voltage and

currents, power, energy data and displays them on a 7-Segment five digital LED display

with auto scrolling.

Blue Jay can set the parameters of DC energy meter from the

customer request.

As the world wide aim is necessary to reduce the power consumption and optimization the

use of available power/energy supplies.

The application of smart energy meters are seen

as ideal solutions by providing monitoring the energy consumption in an accurate manner.

Company Contact:

• Posted By: Chongqing Blue Jay Technology Co., Ltd

• Phone: (+0086) 023-67628702

• Address: JingYu Avenue No.153, Building 3A-13-25, Jiangbei District , 400020, Chongqing, P.R.China, chongqing , chongqing , China

• Email:

• Website: https://cqbluejay.com

• Business Description: Application:

  The MCM1000 Series provides a compact and robust metering solution, enable reliable monitoring of building electrical loads with a low installation cost-per-point by combining sub-metering.

  The unit performs real-time metering, measures energy consumption, multitariff time-of-use (TOU) and monitors power quality for max 18 channel circuits for single phase or 6 channel for three phase circuits.

  Advanced communications options including Modbus via RS485, I/O communications provide for extensive reliable data exchange.

  Multiple

  units can be connected together to meter unlimited number of circuits.

  The versatility of MCM1000 meters are ideal for multi-tenant or departmental metering applications within office towers, condominiums, apartment buildings, shopping centers and other multi-user environments.

  Features:

  ·Class 0.5 basic parameter and class 1 for active energy

  ·6 channels three phase or 18 channel single phase metering

  ·Current measuring .

  /5 or .

  /1 A (optional 333mV)

  ·Standard 35mm - 8 module DIN rail mounting

  ·Provide RS-485 MODBUS-RTU Communications

  ·Optional 6DI / 2DO for signal detect and remote control

  ·Optional external connection LCD screen, 96*96mm panel mount

  ·Optional TOU record for each monitor channel

  ·Accept customization design
