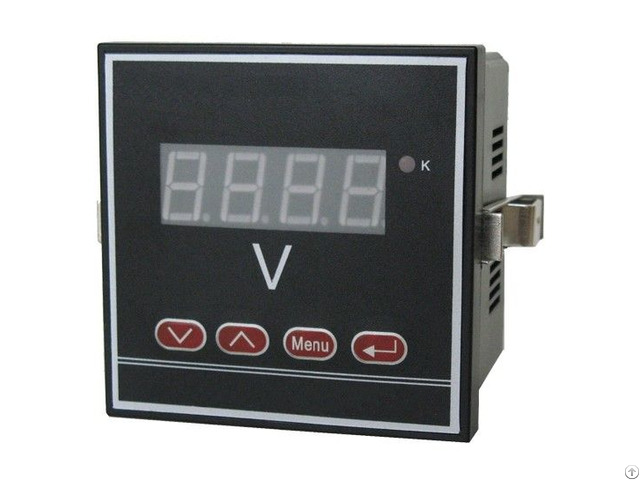

Digital Dc Voltage Meter - China

BLUE JAY DC voltage panel meters with a DC

signal conditioner board combine high accuracy with

high read rate and a wide range of isolated output

options for computer interface and control.

Accuracy

is 99.99% of full scale ±1 counts

DC voltmeter operation provides and six full-scale

voltage ranges from 200.00 mV with 10 mV resolution

to 600.0 V with 5V resolution.

The 200.00 mV and

2.000 V ranges provide a high input impedance of 1

Gohm to minimize the load on the voltage signal.

All voltage and ranges are factory calibrated, without

recalibrating the meter.

Features

Options:

·0.2, 2, 20, 200, 300V & 600V DC voltage ranges

·All ranges factory calibrated

·Accurate to 0.5%

·3-1/2 digit resolution to ±1, 999 for readout in mV, V

·Up to 60 conversions per second

·Universal AC power, 85-264 Vac

·5, 10 or 24 Vdc excitation supply

·Serial communications: RS485/RS232 Interface, RS485-to-Ethernet converter converter

·Low voltage power: 10-48 Vdc or 12-32 Vac

·Relay outputs: 1 or 2 relays

·Analog output: isolated 4-20 mA, 0-20 mA, 0-10V

Company Contact:

• Posted By: Chongqing Blue Jay Technology Co., Ltd

• Phone: (+0086) 023-67628702

• Address: JingYu Avenue No.153, Building 3A-13-25, Jiangbei District , 400020, Chongqing, P.R.China, chongqing , chongqing , China

• Email:

• Website: https://cqbluejay.com

• Business Description: Application:

  The MCM1000 Series provides a compact and robust metering solution, enable reliable monitoring of building electrical loads with a low installation cost-per-point by combining sub-metering.

  The unit performs real-time metering, measures energy consumption, multitariff time-of-use (TOU) and monitors power quality for max 18 channel circuits for single phase or 6 channel for three phase circuits.

  Advanced communications options including Modbus via RS485, I/O communications provide for extensive reliable data exchange.

  Multiple

  units can be connected together to meter unlimited number of circuits.

  The versatility of MCM1000 meters are ideal for multi-tenant or departmental metering applications within office towers, condominiums, apartment buildings, shopping centers and other multi-user environments.

  Features:

  ·Class 0.5 basic parameter and class 1 for active energy

  ·6 channels three phase or 18 channel single phase metering

  ·Current measuring .

  /5 or .

  /1 A (optional 333mV)

  ·Standard 35mm - 8 module DIN rail mounting

  ·Provide RS-485 MODBUS-RTU Communications

  ·Optional 6DI / 2DO for signal detect and remote control

  ·Optional external connection LCD screen, 96*96mm panel mount

  ·Optional TOU record for each monitor channel

  ·Accept customization design
