J125 Series Test Probe - China

price: 0.50 Dollar US$

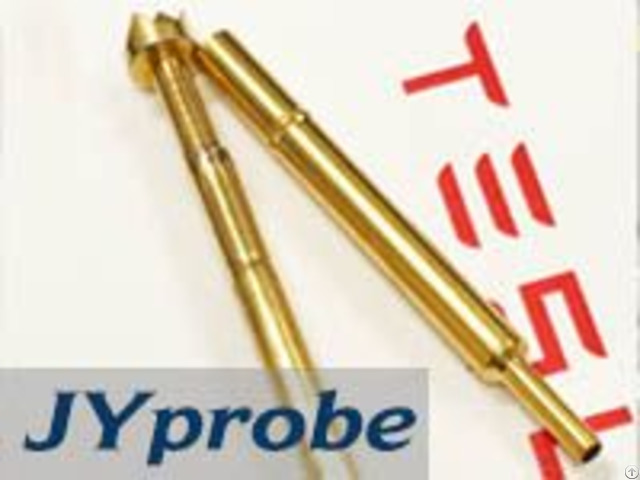

J125 Series Test Probe

Products Photos Catalog J125 Test Probe Photos Catalog

125mil test probe and receptacles Mechanical& Electronical Specification

Pitch 3.18mm[ 0.125in]

Working Stroke 4.25mm[ 0.167in]

Full Stroke 6.35mm[ 0.250in]

Spring Force 1N 1.5N

Resistance Max.

50mOhm

Current 3Amp

Operated Temperature -40~125°C

Drilling Hole Size 2.715 - 2.45mm[.

0935-.

0964in] Material

Plunger SK4 or BeCu/ Au Plated

Spring Music Wire/ Au Plated

Tube Bronze/ Au Plated


Company Contact:


  • Phone: 86-(0)21-3769 5886

  • Address: No118, Lane 168 South Laiting Road,, Shanghai , China

  • Email: Email


Published date: August 30, 2019

  • Business Description: JianYang is dedicated to the success of our customers by being a world-classical provider of innovative spring contact probe (pogo pin) to the semiconductor test industry and spring contact probe to In-circuit test and Function test factory(OEM ODM).

    JianYang, first established in 2008, offers a wide spectrum of spring contact probe (pogo pin), probe pins and services designed to meet the unique challenges of each customer.

    As a leading provider of spring contact probe, we at JianYang are committed to delivering value added solutions through our product offerings and expert customer support.
