Cat1 4g Lte Mini Pcie U9507e C1 P - Taiwan

Cat1 4g lte mini pcie

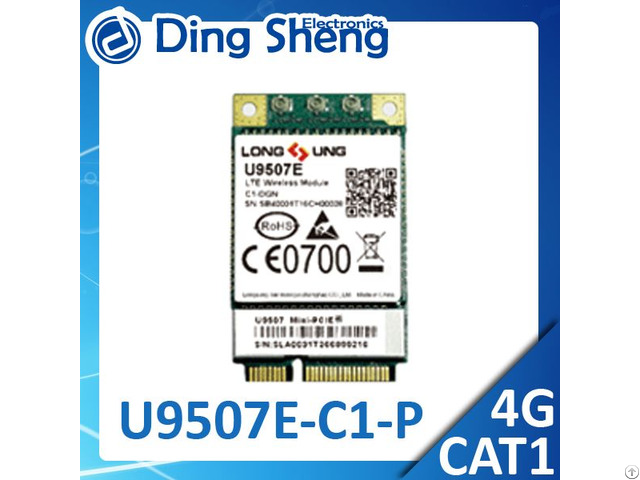

u9507e-c1-pcie is a wireless lte cat1 module which is designed for the global market.

it is a consumptive product; it can be designed in many kinds of applications which can work on lte-fdd/wcdma/gps/glonass (optional) network.

on lte-fdd network, u9507e-c1-pcie enables connect to the internet at dl data speed up to 10mbps and ul data speed up to 5mbps, in the area where lte service are not available, u9507e-c1-pcie still enables reliable and secure data connect over wcdma network.

u9507e-c1-pcie provides sms, mms, phonebook functions as well as high speed access, and also audio function.

it can be designed in many kinds of applications.

such as data card, video monitor, tablet, electric-book, mid, vehicle equipment, etc.

band

• tdd-lte : band b1/b3/b5/b7/b8/b20/b28


• wcdma : tri-band b1/b5/b8 general features

• supply voltage range : 3.3v- 4.2v

• operation temperature : -40°c to +85°c

• dimension : 51.0 x 30.0 x 4.6 mm

• output power:

- class 3 (0.25w) for lte/wcdma

• control via at commands

(3gpp ts27.005/3gpp ts27.007 )

• low power consumption

- sleep mode: 5ma

- power down: 50 μa specifications for data

• support release 9 category 4

• lte-fdd up to 10 mbps dl, 5 mbps ul

• wcdma up to 42.2mbps dl, 5.76mbps ul

• transparent mode

• pbcch support

• ppp-stack

• coding schemes cs 1, 2, 3, 4

• fota

• tcp/ip

• ndis specifications for gps

• gps frequency: 1575.42mhz

• at least support 44 channels

• location accuracy: <10m

• sensitivity

- acquisition: -158dbm

- tracking: -162dbm

• ttff:

- cold start: 60s

- warm start: 45s

- hot start: 15s specifications for sms

• point-to-point mo and mt

• sms cell broadcast

• text and pdu mode additional features

• volte

• phone book

• pcm

• dtmf interfaces

• rf connector

• pci express mini card interface

- power supply

- usb 2.0 high speed

- sim/uim card interface 3 v, 1.8 v

- uart

- analog audio

- pcm

• antenna connector
