Col5811a Fta Qpsk Demodulator 1 Out - China

price: contact company for price

Col5811a Fta Qpsk Demodulator 1 Out

Products Photos Catalog Col5811a Fta Qpsk Photos Catalog

Outline The COL5811A FTA QPSK Demodulator is a professional embedded

product with powerful function.

This device can monitor the MPEG-2

encoding TS stream and display it timely.

Besides, this device can

transfer the TS signal into the AV signal which can be easily used by

customers.

Features • Supports TS input • Fully compatible with the MPEG-

2 • User-Friendly operation interface • Supports OSD • Supports

PAL／NTSC • Supports 256 color LCD display • Supports

PAL／NTSC automatic switching • Supports final channel autosaving

• Supports VBI Specifications

Input 1×ASI , BNC interface

Output 1 ×ASI, BNC Loop interface

Video output 2 ×CVBS， RCA interface

Audio output 2 ×RCA interface，(R/L)


General Dimensions (LxWxH) 482mm×410mm×44mm

Temperature 0~45C(working )，-20~80C(storage)

Power supply 220VAC±10％， ;50Hz

Col5811a Fta Qpsk Demodulator 1 Out

Please see our contact information below


Company Contact:


  • Phone: 13709047782

  • Address: middle section of Tianfu main , Chengdu , China

  • Email: Email


Published date: September 20, 2012

  • Business Description: Colable Electronics Co., Ltd which is concentrates on the research, manufacture, sale and service of digital headend products in China

Related listings

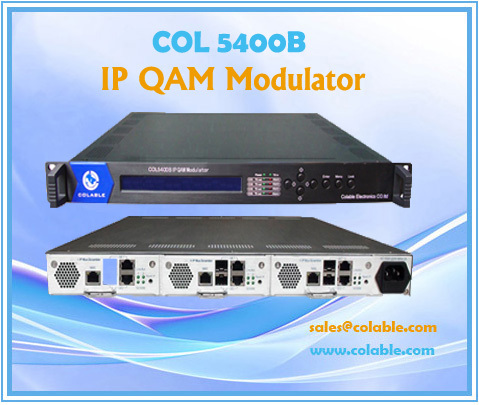

  • Col5400b Ip Qam Modulator
    Col5400b Ip Qam Modulator
    General Electronics - COLABLE ELECTRONICS CO.,LTD - China - September 20, 2012 - contact company for price

    Outline COL5400B 8in1 IP QAM module is the latest generational QAM modulator with high integrated level and performance. The modular design of this device makes each of its daughter cards stand-alone when operating. Besides, each daughter card can re...

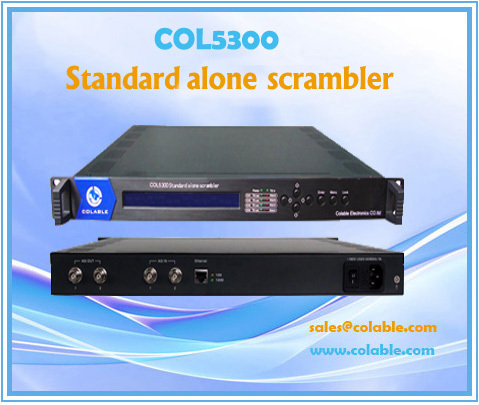

  • Col5300 Standard Alone Scrambler
