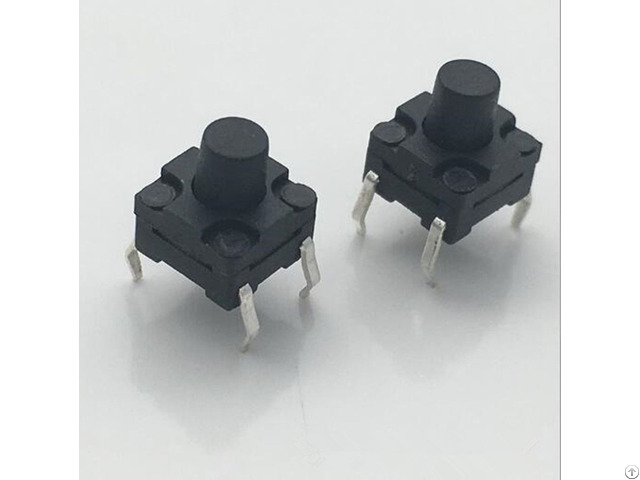

Dip Type 6x6mm Tact Switch With Ip67 Waterproof Function - China

Operating temperature range: -20 to 70°C (normal humidity, normal press) Storage temperature range: -30 to 80°C (normal humidity, normal press) Type of actuation: tactile feedback Rating: 12V DC, 0.5A Actuating force: 250 ±50gf Contact resistance: 100m© maximum Insulation resistance: 100m© minimum Dielectric withstanding voltage: 250V AC (50 or 60Hz) shall be applied across terminals and across terminals and frame for one minute Operating lifespan: measurements shall be made following the test set forth below: 5V DC/5mA resistive load Rate of operating: 1 to 2 operating per second Depression: 250gf Cycles of operating: 100, 000 cycles Solder ability: Oven temperature: 235 ±5°C, time: 3 ±1 second Other precautions: Following soldering process, do not try to clean switch with a solvent or like Safeguard switch assembly against flux penetration from it stop side Please have products keep in close status and storage time is 90 days guaranty after delivering goods at most
