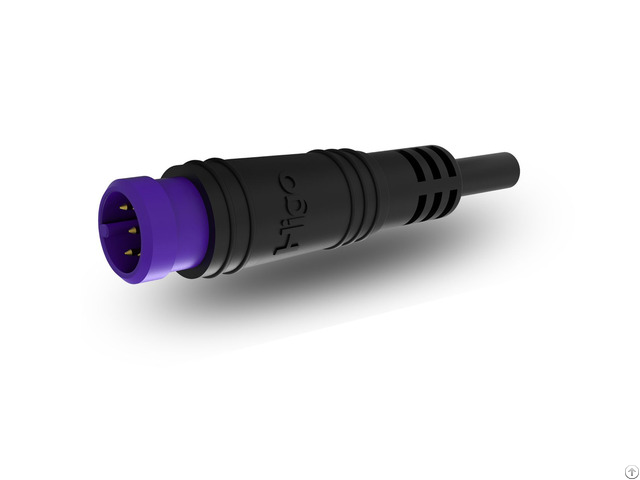

Mini B Signal Connector - China
price: contact company for price
HIGO CONNECTOR-F.
S-Z*09B
More stable, smaller, more convenient design gives more possibilities.
MINI B Signal connector
Waterproof signal cable
Customized Signal connector description
Rated Voltage 48V AC
Rated Current 2A
Withstanding Voltage 500V
Insulation Resistance ≥20MΩ
Contact Resistance ≤10mΩ
Mating Type Insertion Force 80N Max, Extraction Force 30N Min
Mating Cycles 200Times
Operation Temperature -25℃~+80℃
Protection Degree IP66
Max Outer Diameter 9mm
Mating Length 62mm
Contact Material Copper alloy plated with gold which conforms to military standard
Wire Section 0.14mm²/ 0.20mm²
We are professional MINI B Signal connector manufacturer.
Company Contact:
- Posted By: Shanghai Higo Electrical Equipment Co., Ltd.
- Phone: 86 512 51918068
- Address: No.17,Qingfang Road，Changshu, Suzhou , Jiangsu , China
- Email:
- Website: http://www.higocon.com/English/Home
Published date: March 23, 2020
- Business Description: Shanghai Higo Electrical Equipment Co., Ltd. is a high-tech company committed to the design and manufacture of advanced electrical connectors, and provides solutions for connector and cable and electromechanical products.
The company's products range, is widely used in mechanical and electrical equipment, transportation, energy exploration and production, aerospace, medical, nuclear technology, military and other professional applications; We can not only supply high-quality products comply with relevant standards, but also can provide customized service products of high quality and fast; all products are through relevant application certification, meet the requirements of environmental protection.
The process of Higo is the process of serving customers and being successful with their customers! We are diligently and diligently doing everything, and we are full of confidence to meet every challenge.
Higo can supply signal connector, motor connector and battery connector, etc.
Our product's reliability is guaranteed and it can give you a good use experience.
