Quality P1 667 Indoor Full Color Led Screen - China

Overview

Specifications

Place of Origin:

Shanghai, China (Mainland)

Brand Name:

Leado

Model Number:

pitch indoor P1.667

Usage:

Indoor

Tube Chip Color:

Full Color

Display Function:

video, image, text, message and so on

Pixels:

1.667mm

Screen Dimension:

Customized Size

Name:

indoor full-color led screen led curtain

Other name:

smd led

Certificate:

CE ROHS FCC CCC

Pixel pitch:

1.667mm

Module size:

200*150mm

Life span:

100000hours

Application:

Square, Adervertising, Bank, Hall, Rent

Pixel density:

16000dots/sqm

Warranty:

2 Years

LED chip:

Epistar

Packaging & Delivery

Packaging Details:

indoor full-color led screen led curtain Packing: Carton, Wooden box, Flight case

Delivery Detail:

Shipped in 15 days after payment

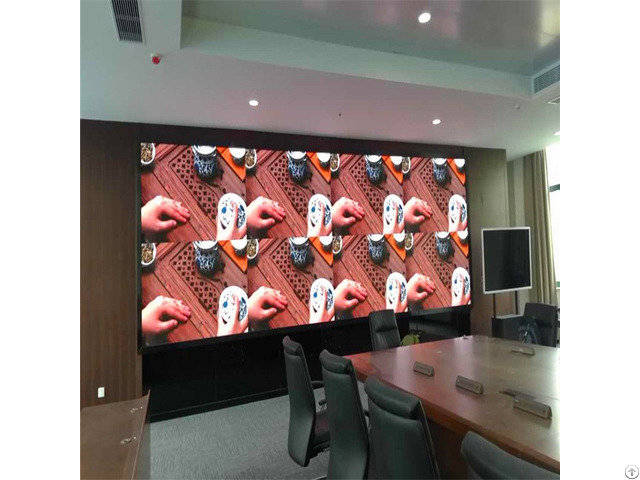

Quality P1.667 indoor full-color led screen led curtain

Product Description

Specification of indoor full-color led screen led curtain

No.

specs HIGH-MINI-PITCH HD Indoor full color PH1.667

1 Pixel structure 1R1G1B 3in1, 1010

2 Pixel pitch 1.667mm 3 Pixel density 359856dots/Sq.

m.

4 Luminance ≥600cd/Sq.

m.

5 Module dimension 200mm(W) * 150mm(H)

6 Module resolution 120 pixel(W) *90pixelmm(H)

7 Module weight 460g

8 Cabinet dimension 480 * 480mm or otherr

9 Cabinet area 0.23 sq.

meter or other

10 Screen weight 40~60kg/m2

11 Optimal visual distance > 1.667m

12 Visual angel 140 degree (H/V)

13 Max power consumption 700w /Sq.

m.

14 Average power consumption 350w /Sq.

m.

15 Brightness adjustment Adjust according to the enviroment

brightness software (0%-100%adjustable)

16 Drive mode 1/32 dynamic scan, constant current

17 Input voltage AC 110~220 volts

18 Operation temperature -40° C~ +60° C

19 Operation humidity 10%~90%

20 Input signal DVI, MPG, AVI, WMV, RM etc.

21 Control system DVI card + master control card + receiver card

22 lifetime (50% brightness) >100, 000 hrs

23 Malfunction dot rate 1/10000

24 Cabinet material Epoxy paint coated Cold rolled steel iron/Aluminum 25 Data interconnection UTP Cat 5/Optical Fiber

26 Application: Rental / Permanent installation available
