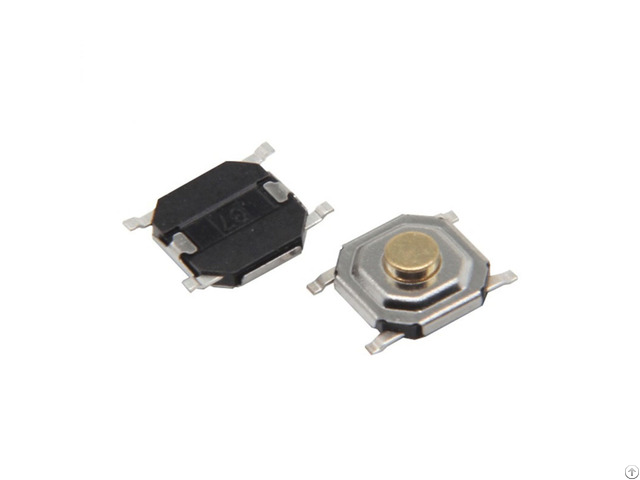

Tactile Switch 4x4mm - China

Operating temperature range: -20 to 70°C (normal humidity, normal press) Storage temperature range: -30 to 80°C (normal humidity, normal press) Type of actuation: tactile feedback Rating: 12V DC, 0.5A Actuating force: 250 ±50gf Contact resistance: 100m© (maximum) Insulation resistance: 100m© (minimum) Dielectric withstanding voltage: 250V AC (50 or 60Hz) shall be applied across terminals and across terminals and frame for one minute Operating lifespan: measurements shall be made following the test set forth below: 5V DC/5mA resistive load Rate of operating: 1 to 2 operations per second Depression: 250gf Cycles of operating: 100, 000 cycles Solder ability: Oven temperatures: 235 ±5°C, time: 3s ±1 second Other precautions: Following the soldering process, do not try to clean the switch with a solvent or the like Safeguard the switch assembly against flux penetration from its topside Please have the products keep in close status and the storage time is 90 days guaranty after delivering the goods at most

Company Contact:

• Posted By: Dongguan Jinbaoli Electronics Co.,Ltd

• Phone: 15338026261

• Address: No3 Xinhai Road , Langbei , Changping Town, Dongguan , Guangdong Province, China

• Email:

• Website: http://www.jbl-hk.com

• Business Description: Dongguan Jinbaoli Electronics Co., Ltd（Jinbeili） was established in 2000, engaged in the develop, produce and sale top quality electronic switches , sockets and connectors .

  Main products including Slide Switch , Tactile Switch , Push Button Switch , Phone Jack , DC Power Socket , USB Connector , SD/SIM Card holder etc .

  Our products are widely used in various of professional audio –visual products, home appliance , smart home products , electronic toys , instruments and meters, mobile phones , notebook computers and other peripherals etc .



  Our Company HQ locates in Changping town , Dongguan city ,with convenient transportation，just 10 minutes far away from Chang-Hu high speed way Exit.

  Our company own three factories ,two in Dongguan city , and the other one in Qinzhou city, Guangxi Province , with more than 500 Employees in total , including a batch of experienced R&D technicians and production staffs .

  Our company consists of Product Injection Department, Metal Stamping Department, Production Department, Quality Department, R&D department and Engineering Department.

  We are strict in quality control from molding injection to stamping, assembling and inspection.

  And we have passed both the QS of ISO9001 .

  In 2018, we fully imported IATF 16949.

  Our company develop and innovate continuously, import the newest international technologies.

  In order to achieve top quality production and high productivity, our company had designed and developed automatic equipments independently.

  So far, most of our products have achieved to be produced by automatic equipments, reduce the instability of the manual production, improve the production efficiency, save the labor cost, ensure the top quality product to be produced, and better to meet the requirements of the market.

  From 2006, all products are in line with ROHS.

  And now, all products meet the standards of ROHS &REACH.

  We strictly control from the material purchase , to production and delivery , send our products to be tested by the Third-party testing agency in regular every year , insure that all products could meet the customers green environmental requirements .

  Our business mainly in China , Hongkong , Taiwan , Japan , Southeast Asia , North America , Europe and other places of the world .

  Top quality product, good after-sale service are our foundation of foothold and development.

  Base on the policy of “professional manufacturing, service sincerely, customer first, quality first”, we always provide top quality products and best service to our customers.

  We have obtained good frame in the field of Switches , Sockets and Connectors , also have won the support and trust from many famous companies like Comfort Science & Technology Group, Energizer Group , Newsmy Digital Technology , Newland Group , Iris Group , Samsung , Yaskawa etc .

  Jinbaoli is your the most reliable cooperative partner!
