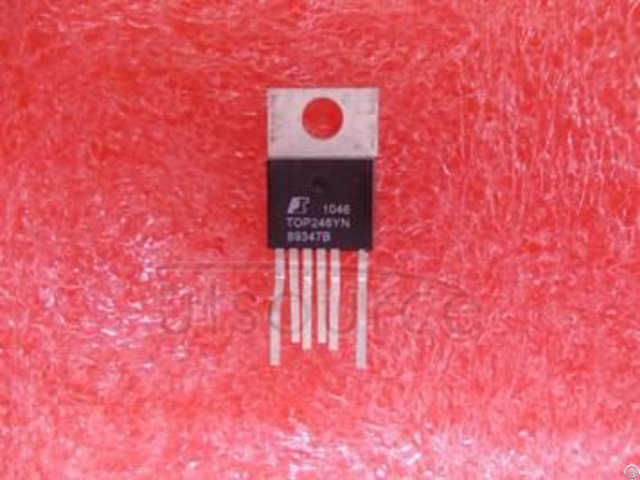

Utsource Electronic Components Top246yn - USA
price: 0.60 Dollar US$
1 - Description
TOPSwitch-GX uses the same proven topology as TOPSwitch, cost effectively integrating the high voltage power MOSFET, PWM control, fault protection and other control circuitry onto a single CMOS chip.
Many new functions are integrated to reduce system cost and improve design?exibility, performance and energy ef?ciency.
Depending on package type, either 1 or 3 additional pins over the TOPS witch standard DRAIN, SOURCE and CONTROL terminals allow the following functions: line sensing (OV/UV, line feed-forward/DC reduction), accurate externally current limit, remote ON/OFF, synchronization to an external lower frequency, and frequency selection (132 kHz/66 kHz)
2 - Features >Extended power range for higher power applications
>No heatsink required up to 34 W using P package
>Features eliminate or reduce cost of external components
>Fully integrated soft-start for minimum stress/overshoot
>Externally programmable accurate current limit
>Wider duty cycle for more power, smaller input capacitor
>Separate line sense and current limit pins on Y/R/F
Company Contact:
- Posted By: UTSOURCE HOLDING Co., Ltd
- Phone: 6267574001
- Address: 2321 W Norwood Pl, Alhambra , CA , USA
- Email:
- Website: https://www.utsource.net
Published date: May 5, 2017
- Business Description: UTSOURCE is a professional purchasing B2B & B2C tools in electronic components field.
UTSOURCE provides different types such as IC, Modules, RF transistors etc., and various product type's PDF parameter form as well as the related photographs, we also provide satisfying one-stop package service for customers.
