Low Noise Linear Stepper Motor High Thrust 25mm With Through Shaft - China

Product Details:

Place of Origin: China

Brand Name: V-motor

Certification: RoHS

Model Number: SM25-Linear Motor

Payment & Shipping Terms:

Minimum Order Quantity: 1

Price: US$10~33

Packaging Details: Out box is paper, for mass production, can use pallet for easy shipping

Delivery Time: 15 days

Payment Terms: L/C, T/T

Supply Ability: 100000/month Detailed Product Description

Motor Type: Linear Stepper Motor Step Angle: 7.5 Degree

Step Length: 0.0127~0.1016 Resistance Per Phase: 13.5Ω 70Ω

Thrus Force: 30~80N Driving Voltage: 5~12VDC

High Light: Low Noise Linear Stepper Motor, Linear Stepper Motor High Thrust, Through Shaft Stepper Motor 25mm

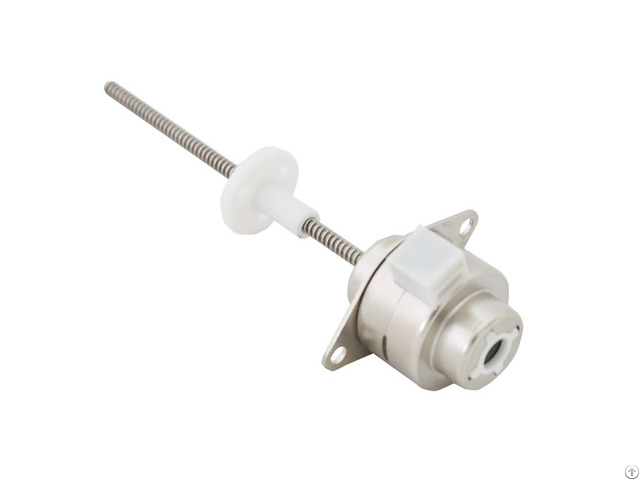

25mm PM linear stepper motor with run through lead screw SM25-Linear stepping motor with lead screw, when the rotor is running CW or CCW, the lead screw will move forward or backward.

At the same time the lead will rotate.

The motor step angle is 7.5 degrees and 15 degrees.

Each step of the stepping motor rotates, the lead moves 0.0127mm (or 0.0254mm, 0.0508mm, 0.1016mm.

There are different lead pitches and step angles for selection.

This product is the company's patented product.

Through the relative motion of the inner rotor and the screw, the rotation of the motor is converted into linear motion.

Mainly used in valve control, automatic buttons, medical equipment, textile machinery, robots and other related fields.

In addition, the external wiring part can use four binding posts (light pins) or connecting wires, or FPC FFC PCB according to customer requirements.

The output section is linear.

Stepper motor parameter data sheet Product name 25mm Linear stepper motor Model SM25--Non-captive

Resistance 13Ω±10%

Pull in frequency 600PPS

The typical thrust 60N

inductance 4.5REF (mH)

Mounting aperture φ3.7mm (Through hole)

Axial height 76 mm (customizable)

Insalution class class E

Lead wrie UL 1061 AWG26

OEM & ODM Service AVAILABLE
