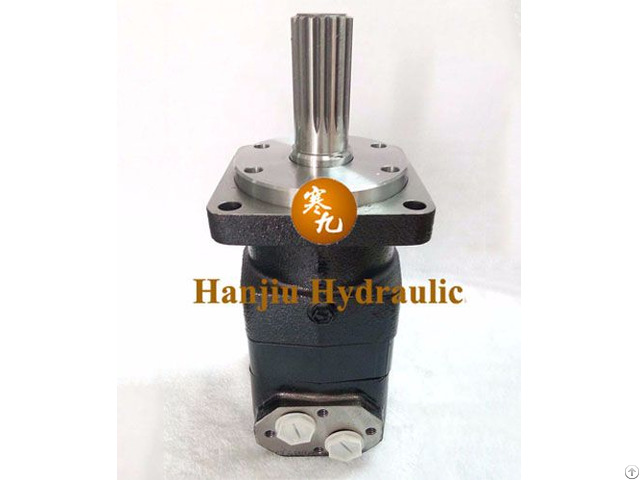

Hydraulic orbit motor BMT

BMT series motor adapt the advanced Gerotor gear set design with disc distribution flow and high pressure.

The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.

Characteristic Features: *Advanced manufacturing devices for the Gerotor gear set, which use low pressure of start-up, provide smooth and reliable operation and high efficiency.

*The output shaft adapts in tapered roller bearings that permit high axial and radial forces.

Can offer capacities of high pressure and high torque in the wide of applications.

*Advanced design in disc distribution flow, which can automatically compensate in operating with high volume efficiency and long life, provide smooth and reliable operation.

Main Specifications:

Type

BMT 160

BMT 200

BMT 230

BMT 250

BMT 315

BMT 400

BMT 500

BMT 630

BMT 800

Geometric displacement

(cm3 /rev.

)

161.1

201.4

232.5

251.8

326.3

410.9

523.6

629.1

801.8

Max.

speed (rpm)

cont.

625

625

536

500

380

305

240

196

154

int.

780

750

643

600

460

365

285

233

185

Max.

torque (N·m)

cont.

470

590

670

730

950

1080

1220

1318

1464

int.

560

710

821

880

1140

1260

1370

1498

1520

peak

669

838

958

1036

1346.3

1450.3

1643.8

1618.8

1665

Max.

output (kW)

cont.

27.7

34.9

34.7

34.5

34.9

31.2

28.8

25.3

22.2

int.

32

40

40

40

40

35

35

27.5

26.8

Max.

pressure drop

(MPa)

cont.

20

20

20

20

20

18

16

14

12.5

int.

24

24

24

24

24

21

18

16

13

peak

28

28

28

28

28

24

21

19

16

Max.

flow (L/min)

cont.

100

125

125

125

125

125

125

125

125

int.

125

150

150

150

150

150

150

150

150

Max.

inlet pressure

(MPa)

cont.

21

21

21

21

21

21

21

21

21

int.

25

25

25

25

25

25

25

25

25

peak

30

30

30

30

30

30

30

30

30

Weight (kg)

19.5

20

20.4

20.5

21

22

23

24

25

* Continuous pressure : Max.

value of operating motor continuously.

* Intermittent pressure : Max.

value of operating motor in 6 seconds per minute.

* Peak pressure: Max.

value of operating motor in 0.6 second per minute.
