2x350kw Dual Electric Motor Ev Kit - China

price: 95500.00 Dollar US$

2x350kw Dual Electric Motor Ev Kit

Products Photos Catalog 2x350kw Dual Electric Photos Catalog

Warranty:

12 months

Place of Origin:

Guangdong, China

Brand Name:

rawsuns

Model Number:

RDED21000

Type:

Synchronous Motor

Frequency:

-

Phase:

Three-phase

Certification:

ce

Protect Feature:

Waterproof

AC Voltage:

576VDC

Efficiency:

-

Name:

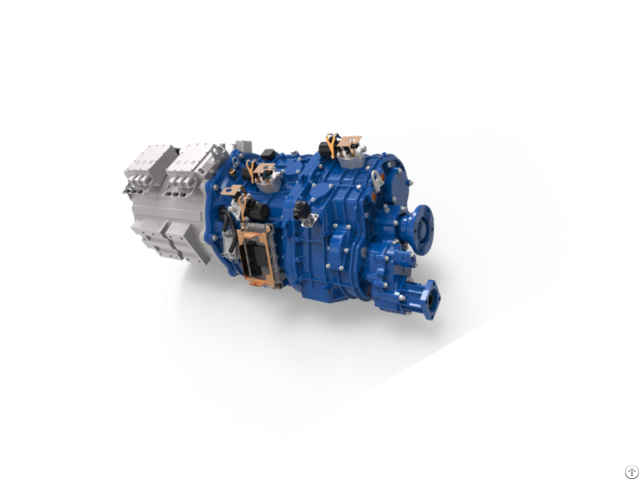

Rawsuns NEW 2x350kW 2x1800Nm dual electric motor ev conversion kit

Gearbox ratio: 1:

7.07, 2.98, 1.38

Gearbox ratio: 2:

4.56, 2.02, 1

Rated Power:

2x210KW

Peak Power:

2x350KW

Rated Torque:

2x1100Nm

Peak Torque:

2x1800Nm

Peak speed:

7000rpm

IP grade:

IP67

Maximum output torque:

20934Nm


Company Contact:


  • Phone: +8613929676982

  • Address: Add: No.1, Room 401, Building A and B, Jianxin Building, Huamei Zhuang, No. 133, Jinsha Rd, Longhu, , Shantou , Guangdong , China

  • Email: Email


Published date: June 9, 2021

  • Business Description: Rawsun EV motor have wide ranges applications for Low-voltage vehicles, Passenger vehicles, Commercial vehicles, TAD (Transmission-mounted electric drive), DM (Direct-drive motor) , PHD (Parallel Hybrid drive), MHD (Multi-mode Hybrid Drive), EAD(Electric Axle Drive).,

    We also provide motor controller, DCDC, DCAC, PDU, OBC, VCU, dashboard, Pedal, gear panel, battery pack with BMS, WireHarness to complete the ev conversion kit.
