    • Wantai Stepper Motor 20bygh306 - China

    price: 20.00 Dollar US$

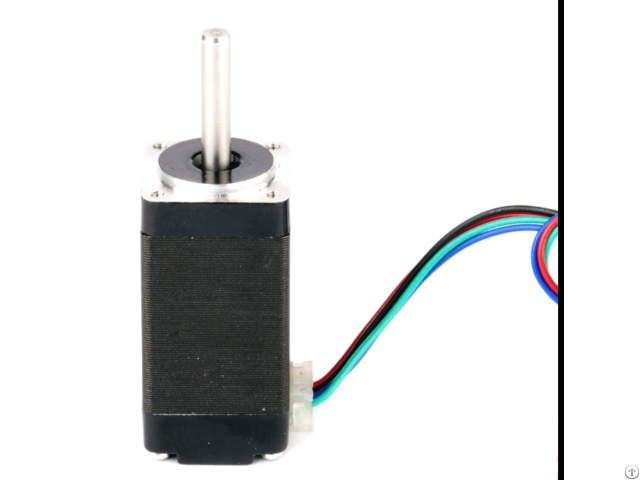

    Wantai Stepper Motor 20bygh306

    Products Photos Catalog Wantai Stepper Motor Photos Catalog

    Part No: 20BYGH306 Single Shaft

    Frame Size: NEMA8

    Step Angle: 1.8 degree

    Voltage: 2.7VDC

    Current: 0.6A/phase

    Resistance: 4.5 Ohm/phase

    Inductance: 1.7 mH/phase

    Holding torque: 18Kg-cm

    Rotor inertia: 9 g-cm2

    Detent torque: 3 kg-cm

    Number of wire leads: 4

    Weight: 0.2KG

    Length: 33mm

    Front shaft diameter: 4mm

    Front shaft length: 20mm round shaft


    Company Contact:


    • Phone: 13815007798

    • Address: No.18, Bo Yang Road, Changzhou , Jiangsu , China

    • Email: Email


    Published date: March 19, 2023

    • Business Description: he company is a high-tech enterprise specializing in the design and production of hybrid stepper motor, brushless DC motor and matching motor drivers.

      Always adhere to the people-oriented, mature production technology, complete testing equipment.
