Wantai Stepper Motor 28bygh301 - China

price: 20.00 Dollar US$

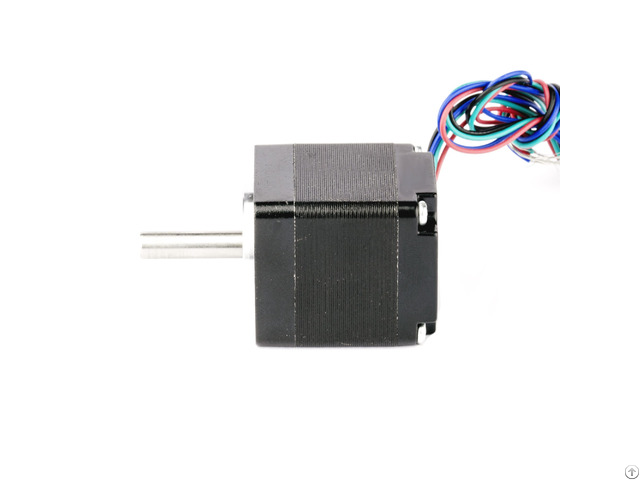

Wantai Stepper Motor 28bygh301

Products Photos Catalog Wantai Stepper Motor Photos Catalog

Part No: 28BYGH301Single Shaft

Frame Size: NEMA11

Step Angle: 1.8 degree

Voltage: 4.56VDC

Current: 0.67A/phase

Resistance: 6.8Ohm/phase

Inductance: 4.9mH/phase

Holding torque: 95Kg-cm

Rotor inertia: 11g-cm2

Detent torque: 5kg-cm

Number of wire leads: 4

Weight: 0.14KG

Length: 45mm

Front shaft diameter: 5mm

Front shaft length: 20mm round shaft

This model is for Single shaft, with 5mm motor shaft, 20mm front shaft length, round shaft! More Order Quantites, more discount!


Company Contact:


  • Phone: 13815007798

  • Address: No.18, Bo Yang Road, Changzhou , Jiangsu , China

  • Email: Email


Published date: March 23, 2023

  • Business Description: he company is a high-tech enterprise specializing in the design and production of hybrid stepper motor, brushless DC motor and matching motor drivers.

    Always adhere to the people-oriented, mature production technology, complete testing equipment.
