Wantai Stepper Motor 39byg003 - China

price: 20.00 Dollar US$

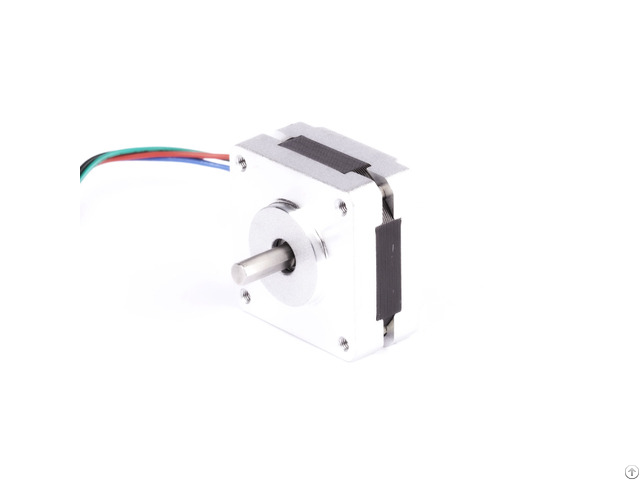

Wantai Stepper Motor 39byg003

Products Photos Catalog Wantai Stepper Motor Photos Catalog

Part No: 39BYG003Single Shaft

Frame Size: NEMA16

Step Angle: 1.8 degree

Voltage: 12VDC

Current: 0.48A/phase

Resistance: 25Ohm/phase

Inductance: 22mH/phase

Holding torque: 100Kg-cm

Rotor inertia: 11g-cm2

Detent torque: 5kg-cm

Number of wire leads: 4

Weight: 0.12KG

Length: 20mm

Front shaft diameter: 5mm

Front shaft length: 24mm round shaft

This model is for Single shaft, with 5mm motor shaft, 24mm front shaft length, round shaft! More Order Quantites, more discount!


Company Contact:


  • Phone: 13815007798

  • Address: No.18, Bo Yang Road, Changzhou , Jiangsu , China

  • Email: Email


Published date: March 20, 2023

  • Business Description: he company is a high-tech enterprise specializing in the design and production of hybrid stepper motor, brushless DC motor and matching motor drivers.

    Always adhere to the people-oriented, mature production technology, complete testing equipment.
