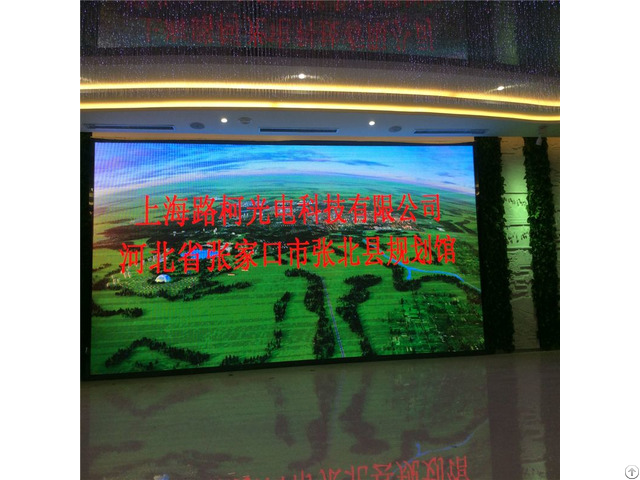

Most Popular Hotsell P6 Full Color Advertising Rgb Led Panel - China

Overview

Specifications

Place of Origin:

Shanghai, China (Mainland)

Brand Name:

LEADO

Model Number:

project indoor P6

Usage:

Indoor

Tube Chip Color:

Full Color

Display Function:

Video

Pixels:

6mm

Screen Dimension:

Customized

Name:

p6 full color advertising rgb led panel

Other name:

Most popular p6 full color advertising rgb led panel

Module size:

384*192mm

Certificate:

RoHS, CE, 3C, FCC

Life span:

100000 Hours

Pixel density:

27777dots/sqm

Module resolution:

64*32 dots

Lifespan:

100000 hours

Color:

1R1G1B

Viewing angle:

140H

Packaging & Delivery

Packaging Details:

p6 full color advertising rgb led panel Packing: flight case, carton box, wooden case

Delivery Detail:

Shipped in 15 days after payment

Most popular hotsell p6 full color advertising rgb led panel Product Description

Specification of p6 full color advertising rgb led panel

No.

specs Indoor full color PH6

1 Pixel structure 1R1G1B 3in1, 3528

2 Pixel pitch 6mm 3 Pixel density 27777dots/Sq.

m.

4 Luminance 1500-2000cd/Sq.

m.

5 Module dimension 192mm(W) * 192mm(H)

6 Module resolution 32 pixel(W) *32pixelmm(H)

7 Module weight 310g

8 Cabinet dimension 768 * 768mm or other

9 Cabinet area 0.59 sq.

meter or other

10 Screen weight 40~60kg/m2

11 Optimal visual distance > 6m

12 Visual angel 140 degree (H/V)

13 Max power consumption 520w /Sq.

m.

14 Average power consumption 260w /Sq.

m.

15 Brightness adjustment Adjust according to the enviroment

brightness software (0%-100%adjustable)

16 Drive mode 1/16 dynamic scan, constant current

17 Input voltage AC 110~240 volts

18 Operation temperature -40° C~ +60° C

19 Operation humidity 10%~90%

20 Input signal DVI, MPG, AVI, WMV, RM etc.

21 Control system DVI card + master control card + receiver card

22 lifetime (50% brightness) >100, 000 hrs

23 Malfunction dot rate 1/10000

24 Cabinet material Epoxy paint coated Cold rolled steel iron/Aluminum 25 Data interconnection UTP Cat 5/Optical Fiber

26 Application: Rental / Permanent installation available
