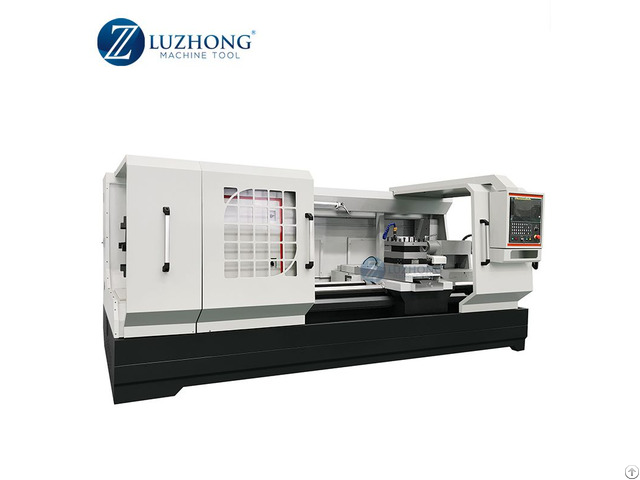

Qk1319 Horizontal Metal Conventional Cnc Pipe Thread Lathe Machine - China

Cnc pipe threading lathe introduction

this series cnc pipe threading lathe is mainly designed for processing internal and external pipe threads including metric, inch, module dp and taper threads, as well as having all the common functions of normal cnc lathe such as processing the inner bore and end face of shafts and disks.

this series lathe machine is widely used in industries including petroleum exploiting, minerals mining, chemical piping and geological prospecting, it is high-efficiency equipment in processing and repairing drilling pipe, drilling rod, thread coupling and so on.

features

big spindle bore and double chuck to ensure process big diameter pipe one-piece bed adopts high strength iron to ensure rigidity and precision

ultrasonic frequency quenched guide-ways ensure good wear-resistance

carriage and guide way contact surface use turcite b to maintain accuracy

standard accessories optional accessories

cnc turret 4 position, 3-jaw manual, tailstock manual, automatic lubrication, coolant pump, semi-shield fanuc or other brand cnc controller, quick change tool post, hydraulic turret or power turret, pneumatic chuck, hydraulic tailstock, pneumatic position limiter, tool setting arm, full-shield

specifications

specification units qk1319

swing over bed mm 630/800

swing over cross slide mm 340/520

distance between centers mm 1000/1500/3000

pipe threading range mm 50-193

guideway width mm 550

max.

load capacity t 3

spindle bore mm 200

spindle speed steps - vf.

4 steps

spindle speed range rpm 20-550 chuck mm φ500 3-jaw manual

turret/tool post - cnc turret 4 position

tool shank size mm 32 x 32

x axis travel mm 320/420

z axis travel mm 850/1350/2850

x axis rapid traverse mm/min 4000

z axis rapid traverse mm/min 6000

tailstock quill diameter mm φ100

tailstock quill taper - mt5

tailstock quill travel mm 250

main spindle motor kw 11

coolant pump motor kw 0.125

weight for 1000 kg 4600

weight for 1500 kg 5100

weight for 3000 kg 6100

dimension for 1000 mm 3300x1880x1850

dimension for 1500 mm 3800x1880x1850

dimension for 3000 mm 5300x1880x1850
