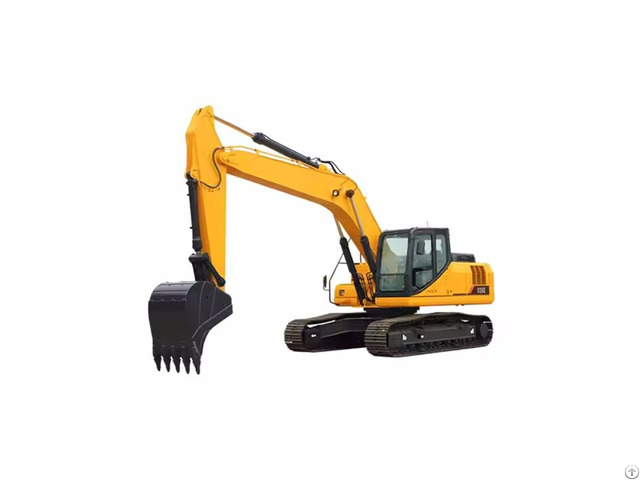

30ton Large Hydraulic Crawler Excavator For Construction - China

The 30 ton large hydraulic crawler Excavator is a heavy-duty engineering machinery that integrates powerful power, intelligent control, safety and reliability.

It is particularly suitable for large-scale earthwork construction, mining, foundation excavation, and large-tonnage cargo loading and unloading at port terminals.

Wenpeng Machinery Factory Direct Sales, 1 Year Warranty.

We also supply small crawler excavators, medium excavators, large crawler excavators, backhoe loaders and other types.

Please contact us for more details.

Features

1 - The 30ton large hydraulic crawler excavator is equipped with a Cummins engine, which is powerful, energy-saving and environmentally friendly, and meets the Euro V standard.

2 - The 30ton large tonnage design is suitable for various large earthwork projects and mining.

3 - The wide crawler and low center of gravity structure ensure excellent stability in complex terrain.

4 - The new generation of hydraulic components are efficient and reliable, with high control accuracy, strong excavation force and good operating efficiency.

5 - The Hydraulic crawler excavator cab has a wider field of view and adopts a new shock absorber to create a comfortable and safe working environment for the operator.

Equipped with advanced electronic control systems and multi-function touch screens, it simplifies the operation process and improves work efficiency.

6 - It fully complies with international safety standards and is equipped with multiple safety protection devices.

The advanced anti-overturning system and operation warning device effectively prevent various safety accidents.

Parameters

Model EX-300

Bucket Capacity 1.4m³

Swing Speed 10rmp

Gradeablity 35°

Max.

Bucket Digging Force Max.

Arm Digging Force Engine Model Cummins QSB7-C227

Power/Revolution Speed 169/2000(KW/rmp)

System Pressure 35Mpa

Dimension 10686*3280*3546mm

Cabin Height 3145mm

Axle Base 4030mm

Wheel(track)Distance 2680mm

Min Ground Clearance 471mm

Tail Swing Radius 3250mm

Max.

Digging Height 9617mm

Max.

Dumping Height 6666mm

Max.

Digging Depth 9617mm

Max.

Vertical Digging Depth 4758mm

Max.

Digging Radius 10233mm

Min.

Swing Radius 4256mm
