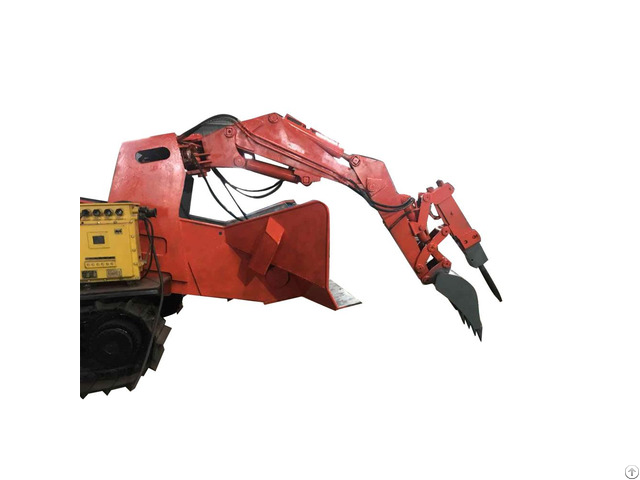

ZWY-180/79L Crawler Mucking Loader For Mining Use

Keywords: Mucking Rock Loader, Muck Sholve Loader, Mining Mucking Rock Loader

Introduction of ZWY-180/79L Crawler Mucking Loader For Mining Use

ZWY-180/79L slanting lane crawler mucking loader is a continuous production high-efficiency ore-out equipment, which is mainly used for mine rock roadway, semi-coal rock roadway excavation, water diversion tunnel, railway tunnel construction and national defense caverns.

The loading operation during construction greatly increases the speed of excavation, and can be applied to roadways with large sections and slopes of +20° to -32°.

Features of ZWY-180/79L Crawler Mucking Loader Retrieving power, strong loading capacity.

The use of sealed lubricated crawler tracks makes it easy to adjust tensioning tracks and has a long service life.

The special bucket teeth of excavators are durable and interchangeable.

From the tail, the conveyor can unload rocks into dump trucks, shuttle carts, side dump trucks, belt conveyors, buckets, and other transfer equipment.

(unload height can be designed according to user needs)

The main action is pilot valve control, easy and convenient operation, safe and comfortable, flexible and strong climbing ability, and smooth work without impact.

Can use the work arm to achieve the risk of face-to-face, full-section rock loading, leaving no dead ends, no manual cleaning of the work surface.

Parameters of ZWY-180/79L Crawler Mucking LoaderProject Unit Technical Parameter

Product Model Track Type ZWY-180/79L

Total weight KG 21500

Loading capacity m3/h 180

Excavation width mm 7030 5800

Picking distance mm 3000 2650

Excavation height mm 4635 3100

Excavation depth mm 990 700

Unloading height mm 1970-2693 (variable)

Unloading distance mm 5123 (variable)

Walking speed m/s 0.54±5%

Scraper chain speed m/min 44
