2400mhz 5ghz Dual Band Panel Mimo Antenna - China

price: 30.00 Dollar US$

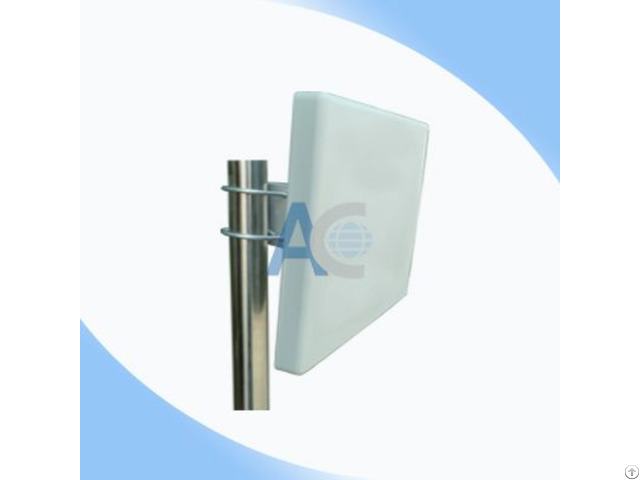

2400mhz 5ghz Dual Band Panel Mimo Antenna

Products Photos Catalog 2400mhz 5ghz Dual Band Photos Catalog

Electrical Frequency Range 2400-2500/5150-5850MHz Band width 100/700MHz

F/B Ratio ≥30dB

Gain 10.5/13dBi

V.S.W.

R ≤1.8

Radiation Direction

Horizontal Beam width 65°/55°

Vertical Beam width 30°/25°

Polarization Vertical and Horizontal

Lightning Protection DC-Grounded

Maximum Input Power 100W

Impedance 50Ώ

Connector 2XN Female

Antenna Radome Material ABS

Mount way Pole

Diameter of Installation Pole Ø30~Ø50mm

Mechanical Dimensions 250×250×25mm Weight 1.2KG

Operating Temperature -40℃ to+80℃

Rated Wind Velocity 241Km/h

RoHS Compliant YES


Company Contact:


  • Phone: +86-757-87668779

  • Address: #12 Xing Ye 5 Road Nan Feng Da Dao,Sanshui, Foshan , Guangdong , China

  • Email: Email


Published date: July 1, 2017

  • Business Description: antenna manufacturer, wifi antenna, 4g antenna, mimo antenna, 3g antenna, gsm antenna, gps antenna, 433mhz/315mhz antenna, pigtail cable and so on.
