Gps Gsm Combo Shark Fin Car Antenna - China

price: 5.00 Dollar US$

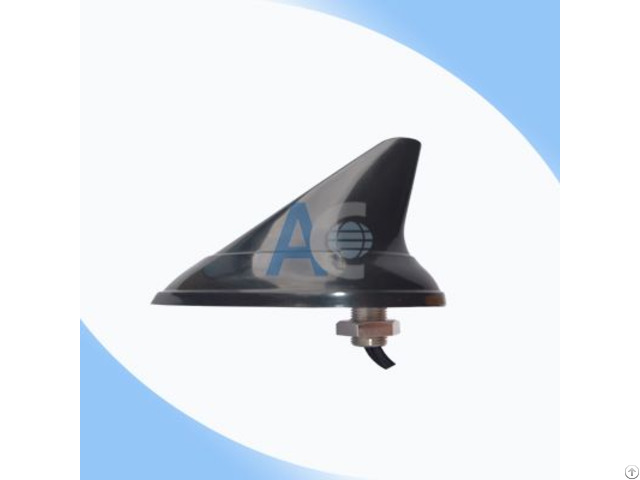

Gps Gsm Combo Shark Fin Car Antenna

Products Photos Catalog Gps Gsm Combo Shark Photos Catalog

Electrical GPS Part: Dielectric Antenna

Frequency Range 1575.42MHZ±3 MHz

Polarization Type RHCP

Gain 5dBi

Impedance 50 ohm

LNA LNA Gain 28±2dB Typical Noise Figure 1.5dB

Ex-band Attenuation 12dB@CF+50MHz/16dB@CF-50M Hz

Voltage 2.7/3.0/3.3/5.0/3.0 to 5.0 etc.

Current Consumption(mA) 11 Max GSM Part: Frequency range 824-960/1710-2170MHz

Gain 3dBi

Polarization Linear

Impendance 50Ω

Mechanical Housing Black Cable RG174 Length 3/5M(can be customization) Connector SMA Male(can be customization)

Environmental Working Temp -40℃~+85℃ Humidity 55%-75%RH Waterproof IP67 Antenna Radome Material ABS Mount way Screw or Screw&adhesive Antenna Dimension 91×62×62 mm Weight 165G RoHS Compliant YES


Company Contact:


  • Phone: +86-757-87668779

  • Address: #12 Xing Ye 5 Road Nan Feng Da Dao,Sanshui, Foshan , Guangdong , China

  • Email: Email


Published date: June 23, 2017

  • Business Description: antenna manufacturer, wifi antenna, 4g antenna, mimo antenna, 3g antenna, gsm antenna, gps antenna, 433mhz/315mhz antenna, pigtail cable and so on.
