Dual Band Pcb Wifi Antenna - China

price: 0.80 Dollar US$

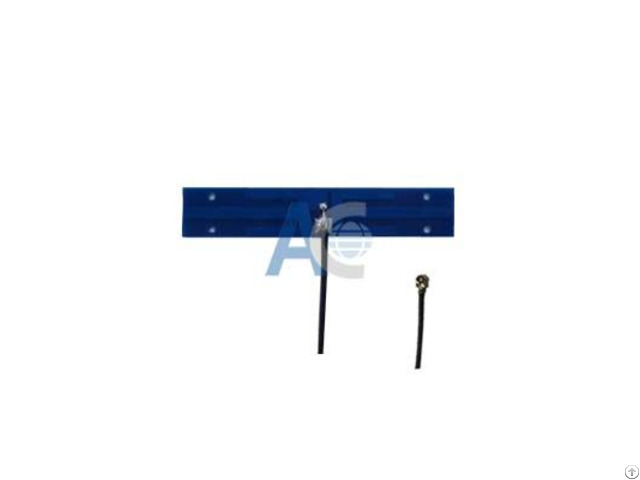

Dual Band Pcb Wifi Antenna

Products Photos Catalog Dual Band Pcb Wifi Photos Catalog

Electrical Frequency Range 2400-2483/5150-5250/5725- 5850MHz

Band width 83/100/125MHz

Gain 3 dBi

V.S.W.

R ≤2.0

Maximum Input Power 50W

Impedance 50Ώ

Connector IPEX

Cable Type RF 1.13

Cable Length 100mm

Antenna Radome Material FR4

Mount way Welding

Mechanical Dimensions 51x9x0.4mm

Weight 6g

Operating Temperature -40℃ to+70℃

RoHS Compliant YES


Company Contact:


  • Phone: +86-757-87668779

  • Address: #12 Xing Ye 5 Road Nan Feng Da Dao,Sanshui, Foshan , Guangdong , China

  • Email: Email


Published date: December 14, 2018

  • Business Description: antenna manufacturer, wifi antenna, 4g antenna, mimo antenna, 3g antenna, gsm antenna, gps antenna, 433mhz/315mhz antenna, pigtail cable and so on.
