Wlan 120degree Sector Outdoor Flat Antenna - China

price: 54.00 Dollar US$

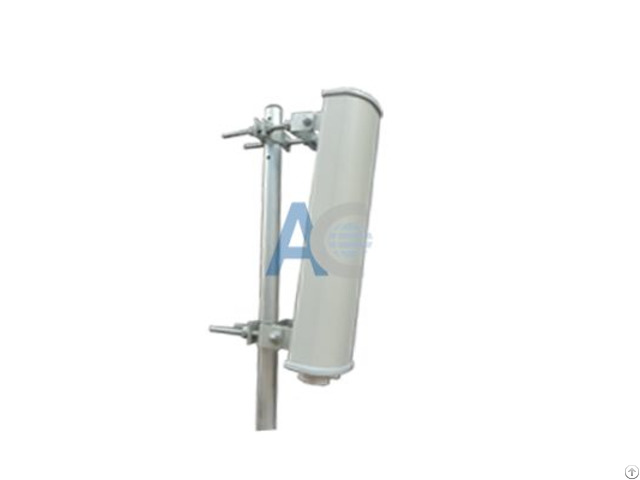

Wlan 120degree Sector Outdoor Flat Antenna

Products Photos Catalog Wlan 120degree Outdoor Photos Catalog

Electrical Frequency Range 2400-2483MHz

Band width 83MHz

F/B Ratio ＞25dB

Gain 14dBi

V.S.W.

R ≤1.5

Radiation Direction

Horizontal Beam width 120°

Vertical Beam width 7.5°

Polarization Vertical Lightning Protection DC Grounded

Maximum Input Power 100W

Impedance 50Ώ

Connector N Female

Antenna Radome Material PVC

Mount way Pole

Diameter of Installation Pole Ø30~Ø50mm Mechanical Antenna Dimension 730x120x58mm

Weight 2.1KG

Operating Temperature -40℃ to+80℃

Rated Wind Velocity 241Km/h RoHS Compliant YES


Company Contact:


  • Phone: +86-757-87668779

  • Address: #12 Xing Ye 5 Road Nan Feng Da Dao,Sanshui, Foshan , Guangdong , China

  • Email: Email


Published date: December 14, 2018

  • Business Description: antenna manufacturer, wifi antenna, 4g antenna, mimo antenna, 3g antenna, gsm antenna, gps antenna, 433mhz/315mhz antenna, pigtail cable and so on.
