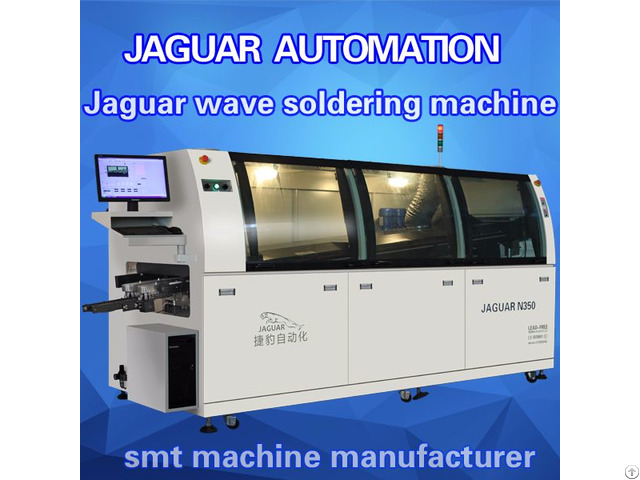

High Quality Wave Soldering Machine Factory Price Smt Welding Equipment - China
price: 9000.00 Dollar US$
Specification: Model No.
JAGUAR N350 Number of heating zones 3 Length of heating zones 1600mm Body size 3300(L)*1400(W)*1560(H) Outside dimension 4100(L)*1400(W)*1560(H) Weight 1100KG Total/running power 24KW/6-8KW Air supply 0.5MPa Preheating method Micro air Preheating power 220V 8KW Control method PC +PLC Range of temp.
control Room temperature---300ºC Preheating time About 10-15mins for setting 150ºC Solder type Lead-free Solder pot capacity 320KG Solder pot temperature 300ºC Solder power 380V 12KW Solder temp.
control method PID&SSR Wave crest drive power 1KW 220V Warm-up time of solder About 120mins for setting 250ºC PCB width 30-350mm Conveyor speed 300-2000mm/min Conveyor direction L→R (R→L optional) Conveyor angle 4-7 º Flux pressure/capacity 3-5 bar/6.5L Finger material Ti Finger type Dual hook Solder pot heater Cast iron
Company Contact:
- Phone: 13626197803
- Address: Building B,Fuda Industrial Zone,National Highway 107,Shajing,Shenzhen,PRC, SHENZHEN , guangdong , China
- Email:
- Website: http://www.jaguar-ele.com
Published date: December 22, 2017
- Business Description: Were specialized in SMT field for over 10 years with the good quality and pretty competitive price, and our main products include:
-Reflow oven
-AOI, X-ray, SPI
-Pick and place machine
-Wave soldering machine
-Loader and unloader, conveyor and etc.
