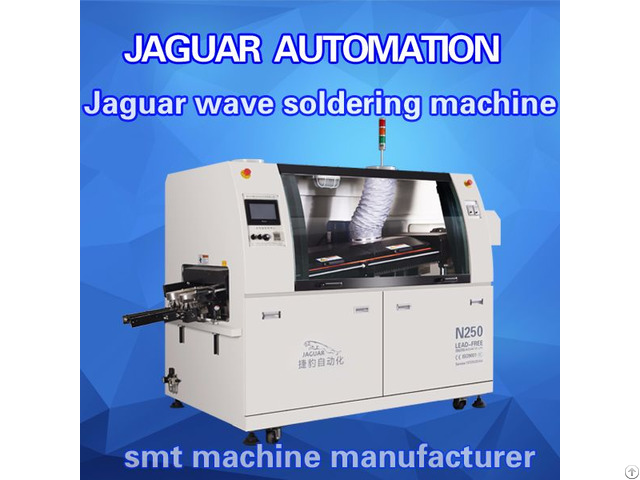

Mini Hot Air Wave Soldering Smt Welding Machine - China
price: 6200.00 Dollar US$
Model No.
JAGUAR N250 Number of heating zones 2 Length of heating zones 600mm Body size 1800(L)*1200(W)*1600(H) Outside dimension 2600(L)*1200(W)*1600(H) Weight 700KG Total/running power 11KW/4-6KW Air supply 0.5MPa Preheating method Hot air Preheating power 220V 5KW Control method Press key +PLC (Option: touch screen, PC) Range of temp.
control Room temperature---300℃ Preheating time About 10-15mins for setting 150℃ Solder type Lead-free / Sn-Pb Solder pot capacity 220KG Solder pot temperature 300℃ Solder power 380V 6KW Solder temp.
control method PID&SSR Wave crest drive power 500W 220V Warm-up time of solder About 120mins for setting 250℃ PCB width 50-250mm Convey speed 0-1800mm/min Convey direction L→R (R→L optional) Convey angle 4—7 º Flux pressure 3-5 bar Flux capacity 3.
Company Contact:
- Phone: 13626197803
- Address: Building B,Fuda Industrial Zone,National Highway 107,Shajing,Shenzhen,PRC, SHENZHEN , guangdong , China
- Email:
- Website: http://www.jaguar-ele.com
Published date: December 22, 2017
- Business Description: Were specialized in SMT field for over 10 years with the good quality and pretty competitive price, and our main products include:
-Reflow oven
-AOI, X-ray, SPI
-Pick and place machine
-Wave soldering machine
-Loader and unloader, conveyor and etc.
