Small Semi Auto Screen Pcb Stencil Printer For Smt Machine - China

price: 3500.00 Dollar US$

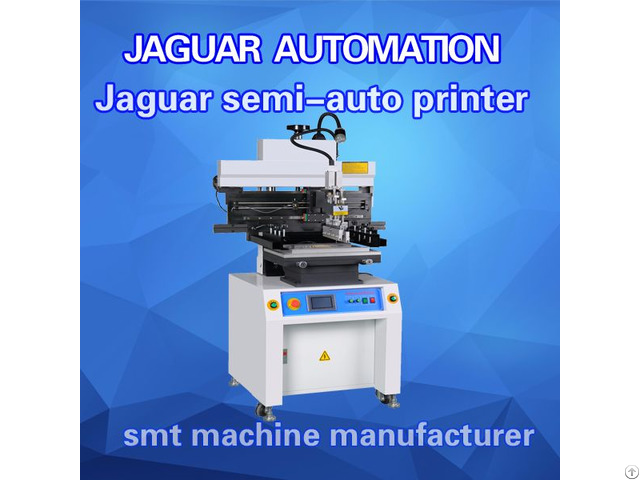

Small Semi Auto Screen Pcb Stencil Printer For Smt Machine

Products Photos Catalog Auto Screen Pcb Photos Catalog

Specifications: Model JAGUAR S400 Dimensions 850×720×1650mm Platform size 320×400mm PCB size 250×350mm Template size 550×680mm Printing speed 0-8000mm/min PCB thickness 0.2-2.0mm PCB fine tuning range Front/side±10mm Power supply 1PAC220V 50/60HZ Platform height 850±20mm Repeating precision ±0.02mm Printing Accuracy ±0.02mm Positioning mode Outside/Reference hole Weight Approx.

300Kg Feature: 1 - Using precision guide rail and the import motor to drive the blade seat conversion, printing, and high accuracy.

2 - Printing scraper can rotate 45 degrees fixed up, easy printing stencil and squeegee cleaning and replacement.

3 - Block can be adjusted before and after the blade, to choose the right printing position.

4 - Combined with a fixed groove printing platen and PIN, easy installation and adjustment, for single, double sided printing.

5 - School Edition way to move a steel mesh, combined with printed (PCB), X, Y, Z.

Convenient fine adjustment.

6 - Can be set to one-way and two-way, a variety of printing methods.

7 - With the automatic counting function to facilitate the production of output statistics.

8 - Adjustable blade angle, steel blade, rubber scraper are suitable.

9 - Touch screen with a screen saver function, the time can be adjusted to protect the touch-screen life.

10 - Printing speed display, can be adjusted.


Company Contact:


  • Phone: 13626197803

  • Address: Building B,Fuda Industrial Zone,National Highway 107,Shajing,Shenzhen,PRC, SHENZHEN , guangdong , China

  • Email: Email


Published date: December 22, 2017

  • Business Description: Were specialized in SMT field for over 10 years with the good quality and pretty competitive price, and our main products include:

    -Reflow oven

    -AOI, X-ray, SPI

    -Pick and place machine

    -Wave soldering machine

    -Loader and unloader, conveyor and etc.
