Hcj5 1 14kv 125a Vacuum Interrupter For Vc - China

price: 20.00 Dollar US$

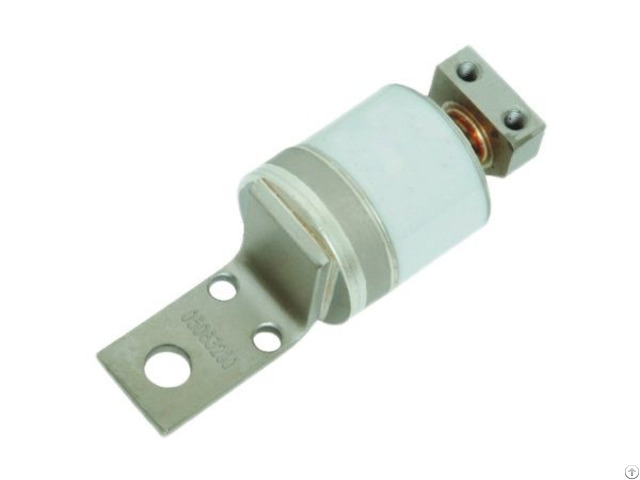

HCJ5 1.14kv 125A vacuum interrupter for VC
1. Brief introduction The interrupter adoption porcelain and ceramics makes to insulate the outer shell. Contact is WCCu metal alloy material advanced technique of adoption Including bulk small. Breaking the abiliting strong the life span is long, maintenanle is simple, no explosion dangerous, no contaminate and the noise is low. It is extensive to used for coal mine, chemical engineering, Petroleum metallurgy etc. department, more than keeping with at the multifarious operation with the bad place usage of environment 2. Vacuum Tube main technique parameter Rated voltage: 1.14 kv
Rated current: 125A
Rated making current: 1250A
Rated breaking current: 1000A
Limiting breaking current: 1250A
Rated short-time withstand current: 1000A
Rated short-time withstand voltage: 10 kv
Mechanical life: 1000000 times
Breaking operations AC3: 150000 times
Breaking operations AC4: 6000 times
Automatic closing force of the contacts: 25±10 N
Force required to hold contacts open at full stork: 40±10 N
Circuit resistance at lowest rated contacts force: ≤120μΩ
Limiting abrasion of contacts: 2 mm
Storage life: 20 years
Internal gas pressure: ≤1.33×10-3 Pa


Company Contact:


  • Phone: 18827250932

  • Address: 4#Rd Xiannv,Zhijiang City,Yicahng City,, Hubei Province,China, Yichang City, Hubei, China

  • Email: Email


Published date: August 30, 2018 -

  • Business Description: Hubei Jucro Electric CO., LTD. is a private enterprise that produces and exports high voltage electrical equipment. The main products are: vacuum contactors, vacuum circuit breakers, vacuum interrupters and related accessories. The product rated voltage range covers 660KV/1.14KV/3.6KV/7.2KV/24KV/40.5KV. The rated current of the product ranges from 125A to 4000A.
