J2057 Double Ended Spring Contact Probes - China

price: 0.50 Dollar US$

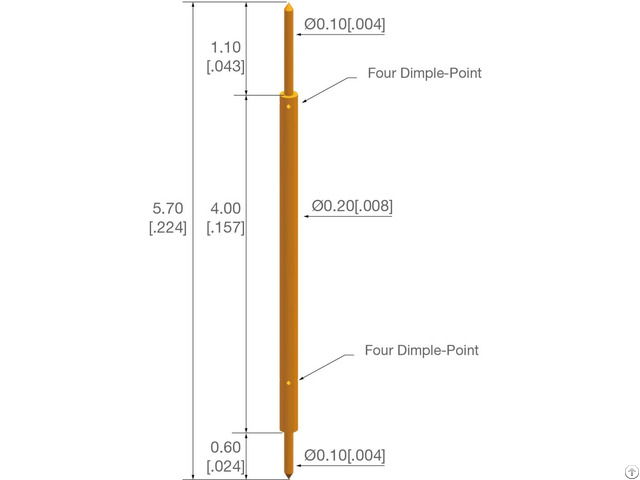

J2057 Double Ended Spring Contact Probes

Products Photos Catalog J2057 Double Ended Photos Catalog

Product Description

J2057 Semiconductor Probes Mechanical& Electronical Specification

Pitch 0.30-0.35mm

Working Stroke 0.65mm[.

026in]

Full Stroke 1.00mm[.

039in]

Spring Force 15g at0.65mm

Resistance Max.

200mOhm

Current 1Amp

Operated Temperature -40~125°C

Material

TOP Plunger SK4/ Au Plated

Bottom Plunger SK4/ Au Plated

Spring Music Wire/ Au Plated

Tube Bronze/ Au Plated


Company Contact:


  • Phone: 86-(0)21-3769 5886

  • Address: No118, Lane 168 South Laiting Road,, Shanghai , China

  • Email: Email


Published date: February 10, 2020

  • Business Description: JianYang is dedicated to the success of our customers by being a world-classical provider of innovative spring contact probe (pogo pin) to the semiconductor test industry and spring contact probe to In-circuit test and Function test factory(OEM ODM).

    JianYang, first established in 2008, offers a wide spectrum of spring contact probe (pogo pin), probe pins and services designed to meet the unique challenges of each customer.

    As a leading provider of spring contact probe, we at JianYang are committed to delivering value added solutions through our product offerings and expert customer support.
