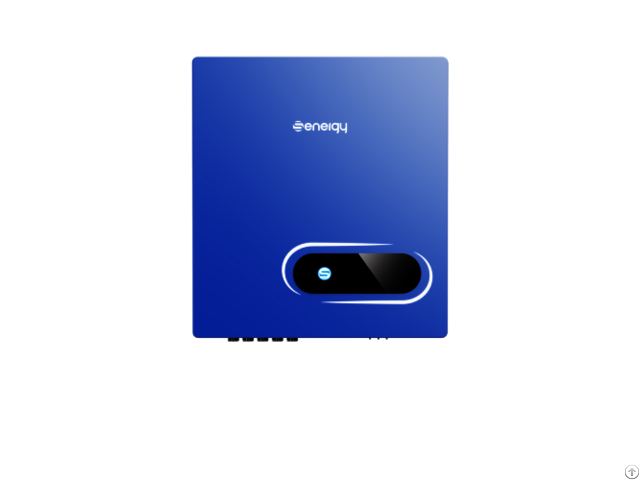

Se 17 20 22 25ktl D3 G2 - China

Features Maximum efficiency 98.4%

Max String Current 20A, compatible with 600W+ modules

150% PV configuration, 110% output overload

Die-cast aluminum case, IP66 waterproof and dustproof, CS anti-corrosion

DC /AC SPD, AFCI detection optional

Compatible with wide power grid voltage and high harmonic power grid environment

App quick commissioning

Remote configuration and upgrade

Supports export control

Model SE 10KTL-D3/G2P SE 12KTL-D3/G2P SE 15KTL-D3/G2P SE 17KTL-D3/G2 SE 20KTL-D3/G2 SE 22KTL-D3/G2 SE 25KTL-D3/G2

Efficiency

Max.

Efficiency 98.3% 98.3% 98.4% 98.4% 98.4% 98.4% 98.4%

European Efficiency 97.8% 97.8% 98.0% 98.0% 98.0% 98.0% 98.0%

Input(PV)

Max.

Input Voltage 1100V

Max.

PV configuration 150%

Rated Input Voltage 620V

Max.

Input Current 30A+15A 2*30A

Max.

Short Circuit Current 40A+20A 2*40A

Start Input Voltage 180V

MPPT Operating Voltage Range 160V-1000V

Max.

Number of PV Strings 3(2/1) 4(2/2)

No.

of MPPTs 2

Output(Grid)

Rated AC Active Power 10, 000W 12, 000W 15, 000W 17, 000W 20, 000W 22, 000W 25, 000W

Max.

AC Apparent Power 11, 000VA 13, 200VA 16, 500VA 18, 700VA 22, 000VA 24, 200VA 25, 000VA

Max.

AC Active Power (PF=1) 11, 000W 13, 200W 16, 500W 18, 700W 22, 000W 24, 200W 25, 000W

Max.

AC Output Current 3*16.8A 3*20.2A 3*25.3A 3*28.6A 3*33.7A 3*37A 3*39.8A

Rated AC Voltage 380V/400V/415V, 3W+N+PE

AC Voltage Range① 260V-510V (Adjustable)

Rated Grid Frequency 50Hz/60Hz

Grid Frequency Range② 45Hz-55Hz/55Hz-65Hz (Adjustable)

THDI <3%@Rated Power

DC Current Injection <0.5%@Rated Current

Power Factor > 0.99 Rated power (Adjustable 0.8 LD – 0.8 LG)

Protection

DC switch Support

Anti-islanding protection Support

AC overcurrent protection Support

AC short circuit protection Support

DC reverse connection Support

Surge Arrester AC Type III (Type II optional) / DC Type III (Type II optional)

Insulation detection Support

String current detection Optional

Leakage current protection Support

General

Topology Transformerless

IP Rating IP66

Night Self Consumption <1W

Cooling Natural cooling Fan cooling

Operating Temperature Range -25℃-60℃

Relative Humidity Range 0-100%

Max.

Operating Altitude 4000m

Noise <45dB

Dimensions (W*H*D) 398mm*460mm*190mm

Weight 23Kg

HMI & COM

Display Wireless & APP+LED, LCD (Optional)

Communication RS485, Optional：WiFi/GPRS/4G

Certification

Safety IEC 62109-1, IEC 62109-2

Grid Code VDE-AR-N 4105, EN 50549-1, CEI 0-21, UNE 206006/206007-1, UNE 217001, IEC 61727/62116

Warranty 5 Years
