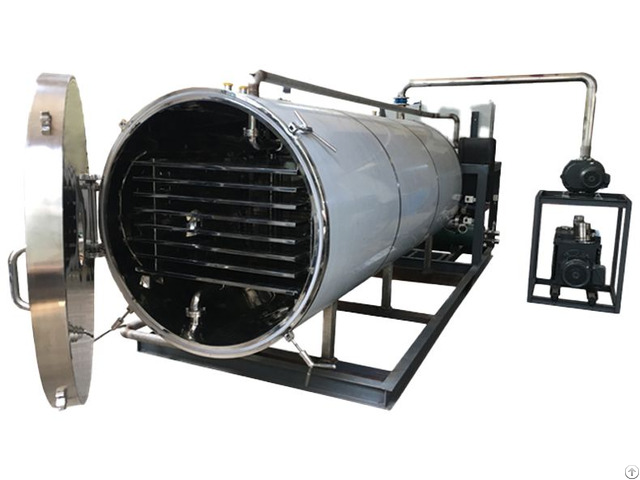

Toffon Freeze Dryer Tf Fzg 15 - China

Product Overview

The FZG series freeze dryers are manufactured through standardized production processes, meeting the processing and production needs of various foods, traditional Chinese medicines, and industrial raw materials.

These devices are constructed with high-quality materials and extensively incorporate industry-recognized imported components.

Moreover, advanced manufacturing techniques are applied to ensure that the equipment fully complies with GMP standards.

Equipment Features

Both the freeze-drying chamber and the partitions strictly adhere to GMP requirements.

The cylinder is made of 304 stainless steel, with an interior that has undergone mirror polishing.

Its manufacturing processes and standards surpass those of conventional food freeze dryer manufacturers in China.

It features an integrated design of the freeze-drying chamber and the cold trap, with a layout of the front chamber and the rear trap.

An observation window with illumination is provided, facilitating the viewing of the internal situation of the chamber.

This design enables easy cleaning and eliminates sanitary dead corners.

The partitions can be customized according to customers' needs.

The 304 stainless steel partitions are processed with surface-brushed square steel profiles, providing a smooth surface that is easy to clean and helps maintain good hygiene.

The water-catch coil in the cold trap is made of clean stainless steel.

Customers can choose between integral and separate structures based on their requirements.

The components of the refrigeration system are equipped with high-standard imported brands, offering strong cooling capacity, fast cooling speed, and stable and reliable performance.

The vacuum system provides various combinations of vacuum pumps to meet customers' demands, using high-quality vacuum pumps from AiFa Technology.

It adopts an imported Omron PLC control system, making data storage and operation convenient.

The control system has both automatic and manual modes, which can be flexibly switched.

Multiple sets of process settings can be configured, and formula modifications are possible during the drying process, allowing for operations in any step.

It uses immersion or steam defrosting methods, ensuring fast and thorough defrosting and cleaning.

It has a pre-freezing function, eliminating the need for external pre-freezing storage and reducing the risks of material liquefaction and contamination.

It has the ability to adjust the process, with functions such as curve-controlled temperature and temperature and vacuum control adjustment, meeting the processing requirements of different materials.

The intermediate oil in the partitions conducts heat without the need for steam assistance, meeting environmental protection and safety requirements.
