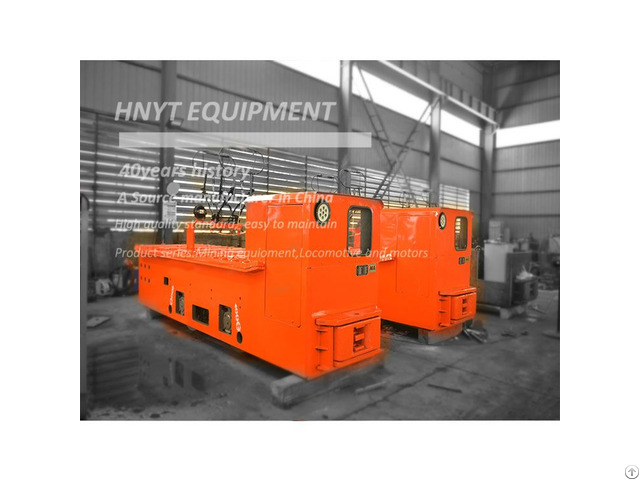

Cjy7 Ton Trolley Wire Locomotive For Underground Mining - China

cjy7 ton trolley wire locomotive for underground mining Adhesive / total weight (t) : 7 ton .

Track gauge (mm) : 600, 762 or 900 .

Traction (KN) : 13.05kN/ 15.09kN Max Traction (KN) : 17.2kN .

Speed(km/h) : 11km/h .

Voltage : 250V or 550V .

Power (KW) : 21kw *2 or 24 kw*2 .

Dimensions Length(mm) : 4550mm .

Width(mm) : 1050, 1212 or 1350mm .

Height(mm) : 1550mm .

Wheelbase (mm) : 1600 mm .

Min Curve radius (m) : 7 m .

Wheel diameter (mm) : Φ680mm .

Controller : Resistance or IGBT or AC controller .

Braking method : Mechanical or air Brake .

Why may sparks appear between the overhead wire and the pantograph of an overhead electric locomotive?

During the driving of an overhead electric locomotive, sometimes sparks can be seen between the overhead wire and the pantograph.

What is this? How to deal with this phenomenon?

First of all, after discovering this phenomenon, if there is gas in the mine where you are working, please stop the car quickly to avoid accidents.

Secondly, the reason why sparks appear between the overhead wire and the pantograph is probably due to poor contact between the two due to reasons such as horizontality.

In this case, sparks may not only be dangerous, but also accelerate the damage of the pantograph.

The final solution is to replace the pantograph; adjust the overhead wire so that it has good contact with the pantograph; and let the driver slow down when turning or forking; repair the track to avoid the electric locomotive from bumping.

The above is the reason and solution for why sparks may appear between the overhead wire and the pantograph of an overhead electric locomotive.
