S And A Water Chiller For Led Lighting Machine 220v 380v 60hz 50hz - China

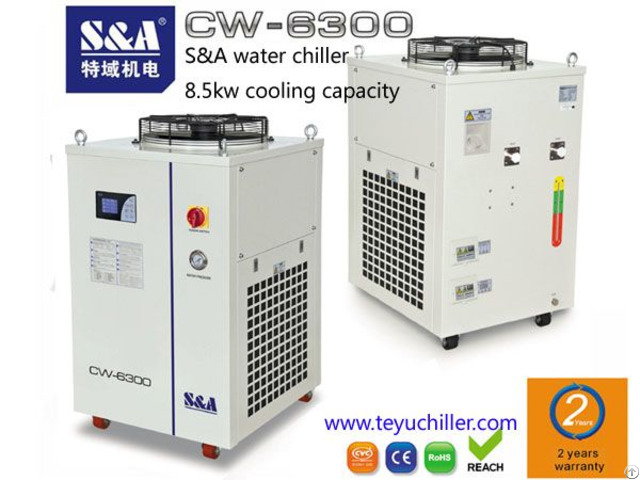

S&A water chiller for led lighting machine 220V/380V 60Hz/50Hz S&A CW-6300 series is high-precision compression refrigeration water chiller, with intelligent temperature control, completed configuration, perfect protection and alarm system.

It is for cooling led lighting machine.

S&A industrial water chillers are popular for its 2 temperature control modes as constant temperature and intelligent temperature control.

Under intelligent mode, the water temperature is adjusted according to ambient temperature.

With that 1 key solution, customers no longer need to worry about the water temperature adjustment of seasonal changes.

CW-6300 Features

1 - 8500W cooling capacity; optional environmental refrigerant;

2.

±1℃ precisely temperature control; 3 - The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;

4 - Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;

5 - Multiple power specifications; CE approval; RoHS approval;

6 - Long working life and simple operation;

7 - Optional heater and water filter.

specifications

One-stop automatic intelligent temperature control: in different environment, user does not need to change setting due to it will automatically switch to appropriate operating temperature.

CW-6300AN: applied to cool a single 300W YAG laser, a single 300W CO2 RF laser tube or a single 300W laser diode.

Optional: CW-6302 dual water inlet and outlet series; heat booster; water filter.

CW-6300 parameter: Voltage: AC 1P 220V/AC 3P 380V; Frequency: 50/60Hz; Refrigerant: R-22 / R-410a Pump power: 0.37-1.1KW; Tank capacity: 45L

Max.

lift: 38-53M; Max.

flow: 70-116L/min

N.

W: 150Kgs; G.

W: 163Kgs;

Dimension : 83 X 65 X 117cm (L X W X H); Packing dimension: 95 X 85 X 140cm(L X W X H) About S&A Brand

S&A produces more than 60000 units of industrial chillers by year, we always insist on”Quality First” in design and production.

“S&A” and “TEYU” have been enjoying high reputation among hundreds of manufacturers which are from both at home and abroad, and export rate reaches above 60%.
