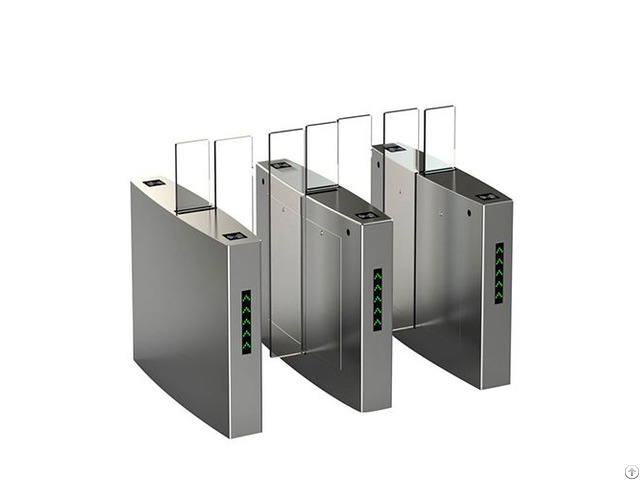

Full Height Sliding Turnstile Jdpyz 6 - China

Affordable full height sliding turnstile, sliding optical turnstile is designed with intuitive colored LED lights guiding users from entry through the authorization and onto the secured side Full height sliding turnstile JDPYZ-6 is made of high quality stainless sheet and designed with intuitive colored LED lights guiding users from entry through the authorization and onto the secured side, providing a fast, durable, smooth way with low noise and low power consumption.

By using an array of optical sensors to determine the number and direction of persons passing through the security turnstile lane, sliding turnstile gate JDPYZ-6 efficiently controls pedestrian access between public and secure areas, and releases the passage for free access upon receiption of a valid open signal and close automatically affter passage.

The unauthorized person attempts to tailgate on a valid entry, or entry without authorization will be recognized and trigger sound alarm.

The baffle height of full height sliding turnstile JDPYZ-6 can be max 1800mm to make climing over them more difficuty for high security, and designed with stylish and modern look meeting the latest architectural trends, and runing at a rather fast speed, slding gate turnstile JDPYZ-6 is widely used In upscale corporate lobbies, high rise building entrances, luxury apartment complexes, universities, and anywhere autonomous entry and aesthetics are important.

Full Height Sliding Turnstile Features

1 - Intuitive approach detection

2 - Precision controlled tempered glass obstacles

3 - Designed in compliance with the most stringent safety and security standards

4 - In case of emergency the obstacles can be unlocked with a simple push to automatically open

5 - Electro-mechanical locking to withstand forced entry attempts

6 - Glass obstacles up to 1800mm without or with straight or sloping overhang

7 - Silent and smooth in operation

8 - Smooth, swinging-motion glass barriers

9 - Unique detection system accurately tracks the passage of a single authorised user

10 - Stylish and flexible design able to virtually blend infinite aesthetics within architectural interior needs Full Height Sliding Turnstile Applications

Offices

Banks

Public institutions

Data centres

Sensitive sites

Schools and universities Full Height Sliding Turnstile Parameters

Housing Material: #304 stainless sheet

Dimension: 1200 x 350 x 980mm

Power Supply: AC220V / AC110V, 50/ 60 Hz

Lane Width: 500mm~550mm

Drive Motor: DC 24V brushless motor

Pass Speed: 35 persons per minute

Input Interface: Dry contact signal or +12V level signal or DC12V pulse signal

Rotating Direction: Bi-directional

Communication Interface: RS485

Rest Time after Power On: 3 Seconds

Open Time: 1 second

Life Cycle: 3 million times

Working Temperature: -30°C~+70°C

Working Environments: Indoor, outdoor (with shelter)
