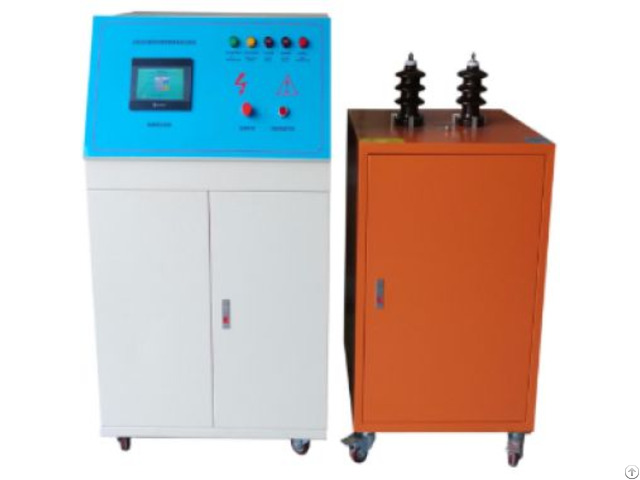

Ac Dc High Voltage Testing Machine For Automotive Wires Qinsun - China

Standards ISO 6722, ISO 14572: International standards for automotive cables and electrical continuity.

IEC 60529: IP code compliance for dust/water resistance during high-voltage testing.

UL 2556: Wire and cable test methods for safety certification.

GB/T 18384: China’s national standard for electric vehicle safety requirements.

Equivalent Standards: SAE J1678, LV 123 (automotive OEM specifications).

Main Parameters: 1 - Power: 3KVA

2 - Input voltage: 220V/50HZ

3 - Voltage output: AC/DC: 0 - 10KV or 0 - 15KV

4 - Breakdown current: 0 - 300 mA or 0 - 500 mA

5 - Test time: Can be set within the range of 1 - 999.9 S/M/H

6 - Voltage - rising mode: It has an electric control function and can automatically raise the voltage to the set value according to the preset voltage value.

7 - Voltage - rising speed: Can be set within the range of 10V - 500V/S

8 - Alarm functions: Threshold safety alarm, zero - voltage safety alarm, audible and visual alarm during voltage - rising, breakdown alarm

9 - Emergency stop function: Equipped with an emergency stop function, which can quickly cut off the voltage and terminate the test.

10 - Transformer protection function: When the transformer is over - current or over - loaded, it can automatically cut off the test input voltage, terminate the test, and protect the transformer.
