Automatic Surface Stress Meter For Chemically Tempered Glass - China
price: 1.00 Dollar US$

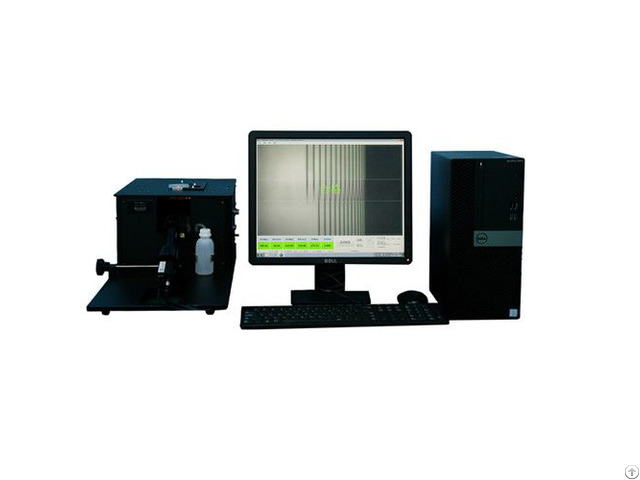

The surface stress meter ( Ref.
ASM-200-FAP)measures surface stress of tempered glass and the depth of the stress layer according to photoelastic technology .
Features
① advanced non-destructive testing method : Photoelastic analysis Refractormeter ② determination of qualified or unqualified (OK/NG ) according to operators’ setting( in continuous testing mode )
③ quantity accumulation of OK and NG samples automatically
④ offer master piece to achieve self-calibration at any time Specifications
Stress Measurement Range (Mpa): 0-1000
Stress Measurement Accuracy (Mpa): ±20
Depth Measurement Range (μm): 5-50
Depth Measurement Accuracy : (μm) ±0.2μm
Measurement Object: chemically tempered glass
Min detecting objects (mm): 12*7
Light source : Special LED Wave length (nm) : 590±10
IR of Prism : 1.72
Company Contact:
- Posted By: Suzhou PTC Optical Instrument
- Phone: +8618913228862
- Address: NO. 189 , Zhangji Road , Eocnomic Development Zone, Kunshan , China (Mainland), China
- Email:
- Website: https://www.ptc-stress.com/
Published date: January 5, 2021
- Business Description: PTC China is a national high-tech enterprise specializing in the design and manufacture of glass Surface Stress Meter , Polariscope , automatic Optical Inspection Equipment ( AOI ） and Vision Inspection System .
