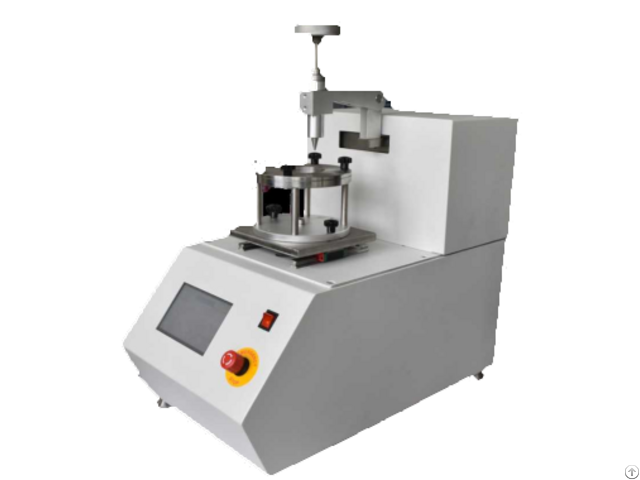

Crosshatch Scratch Tester Qinsun - China

Crosshatch scratch tester-QINSUN Application The instrument is suitable to test automotive interior materials, plastics, rubber, leather, coated fabrics, coated materials, compound material, paint, ink, soft metal, etc.

It is widely used in the area of product quality control, newly developed product performance verification, inspection agency test, etc.

Standards PV 3952 Plastic Interior Components.

Testing of Scratch Resistance Ford BN 108-03.13 Ford Laboratory Test Method - Resistance To Scratching BMW 0180, PA-P 028 Test Method - Resistance To Scratching (crosshatch method) DAF KEUR 00824-401 Test Method - Resistance To Scratching (crosshatch method) GME 60401 Test Method - Resistance To Scratching (crosshatch method) GM 14829 Test Method - Resistance To Scratching (crosshatch method) Jaguar-Landrover TPJLR.

52.004 Test Method - Resistance To Scratching GMW 14688 Scratch and Mar Resistance 8350Z-SDA-9000 Scratch and Mar Resistance NES M M0159 Testing Method of the Scratch Resistance of Interior Features Replaceable scratching head meets a variety of test standards.

Tapered scratching head, square scratching head, needle-shaped scraping head are available for replacement.

Customized service of special scratching head can be provided in accordance with requirements .

Test load weights are universal for easy confirmation of loads; Parameters such as speed, stroke, crosshatch spacing, etc., can be adjusted as per requirements.

Touch screen operation interface is simple and easy to use with Chinese and English switchable; Real-time display the current progress for the convenience to control test process; PLC automation control system automatically completes the transverse shift of crosshatch and lift and fall.

Technical Parameters Items Parameters

Test method Crosshatch scratching test

Stoke distance 10-200mm

Speed range 10-200mm/s

Number of scratches 6-11, optional

Crosshatch moving space 0.5mm-2mm(special scratching finger for moving space below 2mm)

Scratch load 2N, 3N, 5N, 7N, 8N, 10N, 12N, 15N, 20N (optional)

Scratching head material Stainless steel; Tungsten carbide (optional)

Scratching head diameter 0.5mm, 0.75mm, 1mm(Erichsen318), 3mm, 5mm, 7mm

Plastic scratching finger(optional) polymethyl methacrylate PMMA)；diameter 16mm, thickness 1mm, edge radius0.5mm, hardness shore D85。
