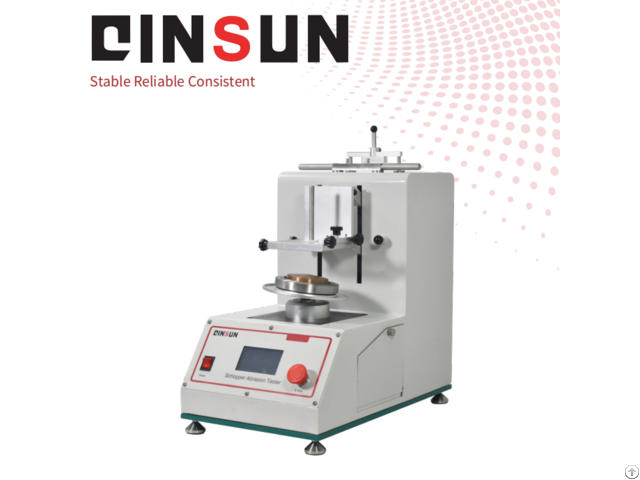

Schopper Abrasion Tester Qinsun - China

Schopper Abrasion Tester-QINSUN Standards DIN 53863, Part 2: Abrasion test methods for textile fabrics (rotary abrasion test).

GME Standard 60345 & GMW Standard 3283: Industry-specific automotive material testing protocols.

VW/Audi Zentral-Norm PV 3908: Volkswagen/Audi group standard for material durability evaluation.

Product Advantages Precision Compliance: Designed to fulfill multiple global automotive standards, ensuring universal applicability.

Versatile Applications: Ideal for evaluating abrasion resistance of automotive interior materials (e.g., fabrics, leather, coated textiles) under tension.

User-Centric Design: Compact structure with intuitive touchscreen controls for manual or automatic operation.

Accurate Measurement: Integrated adjustable arc height device (0–10mm) and load-adjustable system (0.5–25N) for precise testing.

Durability: Robust construction with a stainless-steel test head and corrosion-resistant components for long-term reliability.

Efficiency: Reversible rotation direction every 100 cycles minimizes wear bias and accelerates testing processes.

Product Features Rotary Abrasion Mechanism: A specimen clamped on a rotating test head (166° taper angle) maintains line contact with an abrasion block, simulating tangential friction.

Modular Clamping System: Obtuse-angle cone chuck and mounting support ensure secure specimen fixation during high-speed rotation (75 revolutions/minute).

Touchscreen Interface: Real-time control panel with programmable cycles, load settings, and rotation reversal triggers.

Arc Height Adjustment: Built-in gauge for measuring sample deformation post-test, critical for assessing material resilience.

Load Customization: Interchangeable weights (50g–1500g) accommodate diverse testing requirements, from delicate fabrics to heavy-duty materials.

Space-Saving Design: Compact dimensions (325×565×560mm) and lightweight build (35kg) optimize laboratory workspace utilization.

Technical Parameters Parameter Specification

Revolutions per Minute 75 rpm

Taper Angle 166°

Mounting Head Declination 7°

Specimen Size 100 cm²

Test Area 50 cm²

Arc Height Adjustment 0–10 mm (manual/automatic)

Load Range 0.5–25 N (adjustable)

Standard Weights 50g, 100g, 250g, 500g, 1000g, 1500g

External Dimensions 325 (W) × 565 (D) × 560 (H) mm

Net Weight 35 kg

Power Supply 115/240V, 50/60Hz

Power Consumption 130W
