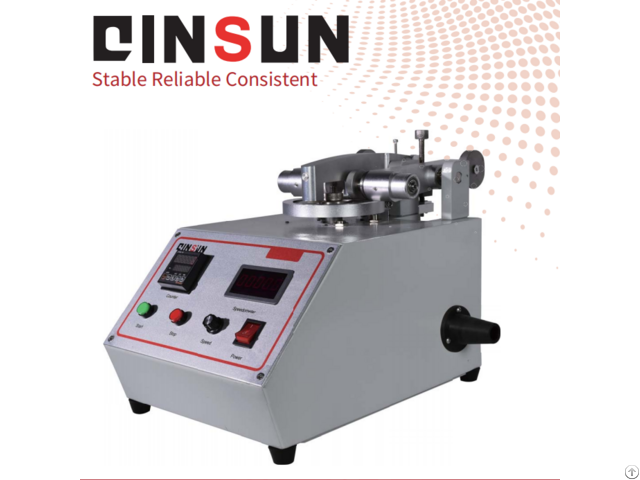

Taber Abrasion Resistance Tester Qinsun - China

Taber Abrasion Resistance Tester-QINSUN Standards ISO Standards: ISO 9352, ISO 5470, ISO 7784

ASTM Standards: ASTM D1044, ASTM D3884, ASTM D4060

Chinese Standards: GB/T 5137.1, QB/T 2726

German Standard: DIN 53109

Product Advantages Versatile Applications: Suitable for testing abrasion resistance of fabrics, cardboard, coatings, leather, tiles, glass, natural rubber, and more.

User-Friendly Operation: Intuitive LCD control panel with real-time speed display and adjustable speed settings (30–75 RPM).

Precision Compliance: Meets ASTM-standard 125g pressure requirements via adjustable counterweights, with optional loads up to 1250g.

Customizable Testing: Preset wear cycles (1–999, 999 revolutions) and vacuum suction height adjustment for debris removal, enhancing test accuracy.

Durability & Performance: Branded silent motor ensures low-noise operation and long-term reliability.

Consistent Results: Pre-grinding standardization of abrasion wheels guarantees high repeatability in test outcomes.

Product Features Digital Control Interface: LCD screen displays real-time speed (30–75 RPM adjustable) and allows manual or programmed cycle settings.

Advanced Balance System: Rear arm equipped with interchangeable counterweights (250g, 500g, 750g, 1000g) for precise pressure control, including 125g ASTM compliance.

Adjustable Vacuum System: Height-adjustable suction port adapts to materials of varying thicknesses, efficiently removing debris during testing.

Modular Abrasion Wheels: Replaceable wheels (e.g., CS-10, H-18) and sandpaper discs (S-11) cater to diverse material testing needs.

Sample Preparation Kit: Includes sample stickers (S-36) and a diamond wheel polisher for pre-test surface conditioning.

Technical Parameters Parameter Specification

Rotational Speed Adjustable: 30–75 RPM (digital control)

Sample Diameter 100 mm

Test Platform Diameter 113 mm

Cycle Range 1–999, 999 revolutions (presettable)

Air Pressure 250g (standard)

Weight Options 250g, 500g, 750g, 1000g (included); 125g (optional)

Wheel Pressure Range 125g, 250g, 500g, 750g, 1000g, 1250g

Vacuum Arm Adjustment Height-adjustable

Power Supply 220V, 50Hz

Dimensions 220 (W) × 380 (D) × 300 (H) mm

Net Weight 20 kg
