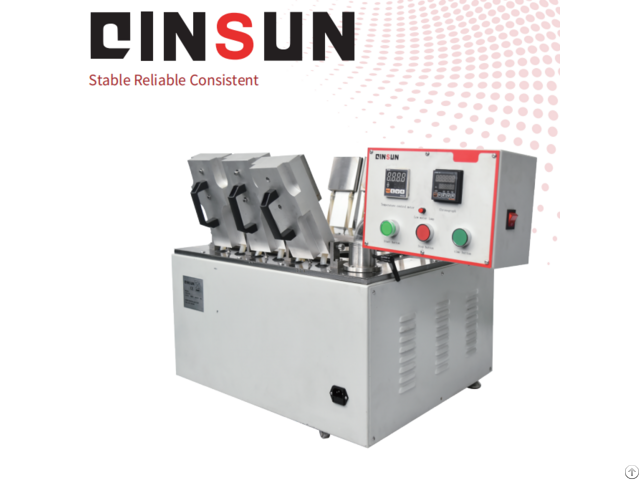

Fogging Tester Qinsun - China

Fogging Tester-QINSUN Standards DIN 75201: Automotive trim material fogging resistance.

ISO 6452: Coated fabrics fogging behavior in vehicle interiors.

SAE J1756: Automotive interior material fogging test protocol.

BS EN 14288 & QB/T 2728: Leather and textile fogging evaluation.

PV 3920/3015: VDA-standard fog value determination for non-metallic materials.

ES-X83231, NES M0161, GM 9305P: OEM-specific fogging requirements for automotive suppliers.

Product Advantages Triple Testing Modes: Supports gloss, gravimetric, and haze analysis for comprehensive material evaluation.

Precision Temperature Control: ±0.1°C accuracy across high/low baths (room temperature to 150°C) ensures repeatable results.

Six-Station Efficiency: Simultaneous testing of six samples accelerates R&D and QC workflows.

Corrosion-Resistant Design: 316 stainless steel test chambers and epoxy-coated steel frame withstand harsh chemical environments.

Advanced Safety: Magnetic safety switch, over-temperature thermostat, and audible test-completion alerts.

Data Connectivity: USB port and multi-function sensors enable seamless integration with lab information systems.

Product Features Dual-Bath System:

High-Temperature Bath: 670×490×540mm, 3kW heating power (up to 150°C).

Low-Temperature Bath: 400×220×520mm, 500W cooling capacity (0–100°C).

Automated Controls:

Digital thermoregulator with microprocessor for precise temperature programming.

Programmable timer (1–9999 min) with auto-stop and end-test buzzer.

Modular Accessories:

18/8 stainless steel test cups, flat beakers, and chrome steel rings for sample mounting.

Six interchangeable cooling plates and haze/gloss measurement kits.

Safety Compliance:

CE-certified with anti-acid epoxy coating, emergency stop, and overpressure relief.

Technical Parameters Parameter Specification

High-Temperature Range Room temperature – 150°C (280°C optional)

Low-Temperature Range 0–100°C

Temperature Stability ±0.1°C (at 200°C)

Heat-Up Time <45 min (to 150°C)

Cooling Capacity 500W (low bath)

Power Supply AC 220V, 50Hz, 3.5kW

Dimensions 500 (W) × 650 (D) × 600 (H) mm

Net Weight 50 kg (excluding thermal media)

Data Interface USB 2.0, remote sensor compatibility

Safety Systems Magnetic switch, thermostat, audible alerts
