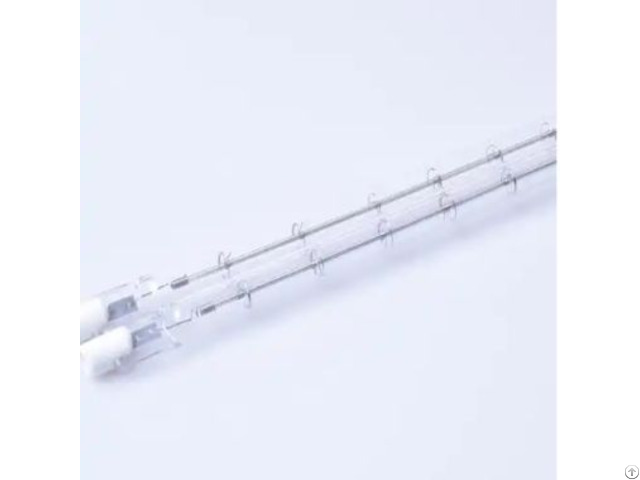

High Power Lamp Tube 1500w 12000w - China

Applicable Standards

High-power lamp tubes adhere to global safety and performance benchmarks, including: IEC 60598-1 (Luminaires – General Requirements and Tests) ASTM G155 (Standard Practice for Operating Xenon Arc Light Apparatus for Exposure of Non-Metallic Materials) ISO 4892-2 (Plastics – Methods of Exposure to Laboratory Light Sources – Part 2: Xenon-Arc Lamps) SAE J2527 (Automotive Exterior Weathering Test for Coatings) CIE 85: 1989 (Solar Spectral Irradiance) These standards ensure uniformity in light output, spectral distribution, and safety protocols.

Working Principle

High-power lamp tubes operate via electrical discharge in gas-filled envelopes: Ionization: An electric arc ionizes xenon gas (or metal halides), emitting broadband light.

Spectral Control: Optical filters and reflectors shape the output to mimic natural sunlight (e.g., D65 - AM1.5G) or custom spectra.

Thermal Regulation: Integrated cooling systems prevent overheating, ensuring stable performance.

Test Principle & Applications

These lamps are used in accelerated aging chambers to simulate environmental stressors: Weathering Testing: Evaluating material degradation under UV, heat, and moisture (ASTM G155 - ISO 4892).

Automotive Validation: Assessing paint, trim, and interior component durability (SAE J2527).

Photovoltaic Research: Testing solar cell efficiency under standardized irradiance (IEC 60904).

Textile/Coating Analysis: Measuring colorfastness and adhesion after prolonged exposure.

Key Advantages

High-Intensity Output: Enables rapid testing cycles (e.g., 1000 hours of exposure in weeks).

Spectral Customization: Mimics sunlight, window glass filtration, or UV-only conditions.

Industrial Scalability: Modular designs accommodate multi-lamp setups for large-scale testing.

High-power lamp tubes are indispensable for industries demanding rigorous product validation, offering a controlled, efficient, and replicable approach to environmental simulation.

Main Parameters

Parameter Specification Range

Power Rating 1500W, 3000W, 6000W, 9000W, 12000W

Light Source Xenon arc, metal halide, or UV-enhanced discharge lamps

Spectral Range 280–3000 nm (UV-Vis-IR)

Irradiance 50–1200 W/m² (adjustable via filters/optics)

Lifespan 1000–3000 hours (dependent on power and usage)

Cooling System Forced air or liquid circulation for thermal management

Dimensions Length: 600–2000 mm; Diameter: 50–150 mm (varies by model) Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China, Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience, Based on international testing standards, We are also the instrument supplier for BV SGS laboratory, We provide one-stop solutions for lab instruments, Free Training and Turn-Key Service, Products exported all over the world, Offer 36 month warranty and are a trustworthy partner.
