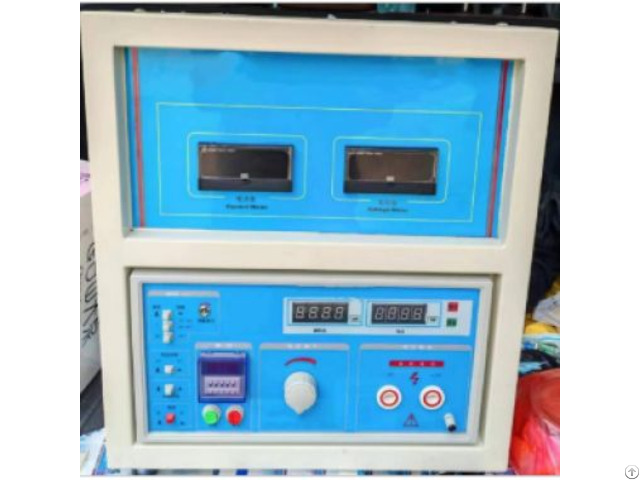

High Voltage Dc Stability Tester Qinsun - China

Standard Engineered to meet the stringent safety and performance demands of global industries, this High-Voltage DC Stability Tester adheres to IEC 61010-1 (safety requirements for electrical equipment) and UL 61010-1 standards.

It is certified for CE compliance and designed to align with AEC-Q100 (automotive grade) and MIL-STD-883 (aerospace) specifications, ensuring seamless integration into regulated testing environments.

Main parameters: (1) Power: 500VA

(2) Power supply: 220V/50HZ

(3) High - voltage output range: 0 - 5KV (AC/DC)

(4) Leakage current range: 0 - 2/20/100mA (AC), 0 - 2/20mA (DC)

(5) Accuracy: ±(3% + 3counts)

(6) Test time setting range: 1μs - 999.9S/M/H

(7) Voltage adjustment mode: Manual adjustment

(8) A digital voltmeter with data communication function (range: 0 - 5.00KV) and a digital ammeter (0.1μA - 3.0mA) are used to realize the data acquisition function of test voltage and leakage current.

(9) Issues regarding high - voltage and grounding connections: A.

In principle, the wire conductor of the test sample should be connected to the high - voltage, and the saltwater for testing should be grounded, which ensures testing safety.

B.

It is not recommended to connect the saltwater to the high - voltage and ground the conductor of the test wire.

C.

The testing equipment must be placed within a safety fence during testing to avoid personal safety accidents.

(10) Dedicated software for recording voltage and current data is provided to achieve data storage.
