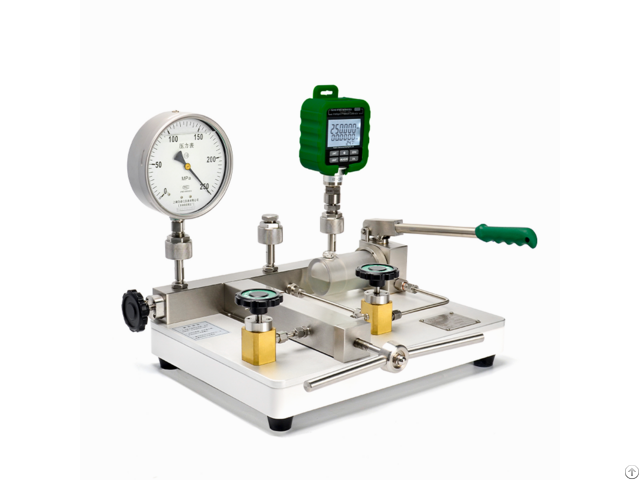

Hs706 Hydraulic High Pressure Comparison Pump - China

It is generated up to 2500 bar to calibrate high pressure instruments against a standard gauge.

It is fitted with hand pump which could quickly pressurize to the whole system; perfectly integrated operation of hand pump & booster helps user to accomplish high pressure points calibration, closing shut off valve during pre-pressurizing 150bar in order to get high pressure ranges.

The lead screw adjusts the exact pressure values in the process.

A specially designed transparent oil cup marks the balance of working medium.

It widely calibrates pressure gauges in the laboratory.

Specification

Generated Pressure Range: 0-1600/2500Bar

Working media: 25#Transformer Oil

Adjust resolution : 10mbar

Material:

Body: Stainless Steel/Aluminium

Output : stainless steel

Seals : Buna-N

Output connection: M20*1.5 Female *2pcs

Weight: 25kg

Dimensions: 570*490*195 mm
