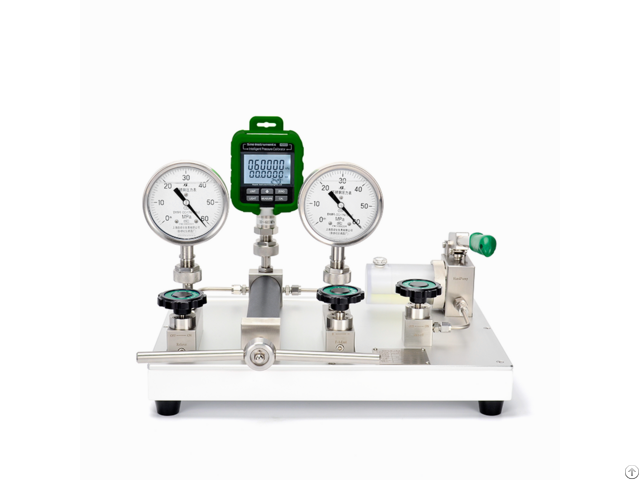

Hs710 Hydraulic Pressure Comparison Pump - China

It adopts advanced stainless steel, with bench-top structure and designed to generate pressure range up to 700bar.

The sliding block structure for screw pump design makes the high pressure operation more easy and save labor, and saves operation space without screw outside .

That special F-adjust value adjusts the exact pressure value and calibrate 2.5bar pressure instruments.

The detachable oil cup is easy to clean and maintenance, checking working medium timely from outsides.

3Pcs outputs with quick coupling makes it calibrated pressure instruments together.

It widely calibrates pressure gauges in the laboratory.

Specification

Generated Pressure Range: 0-600/700Bar

Working Media: 25# Transformer Oil(Distilled water for model HS710A)

Material: Body: Stainless Steel/Aluminium, Seal: Buna-N

Adjust Resolution: 1Mbar

Output connection: M20*1.5 Female *3pcs

Weight: 14.9kg16

Dimensions: 430*330*170 mm
